Ingersoll 116YT

The Ingersoll 116YT is a tractor produced by Ingersoll Lawn Tractors. It is equipped with a 656 cc 40.03 ci engine. The rated power output is 16 hp 11.9 kW. Transmission: Peerless. Operating weight: 373 lbs 169 kg.

Overview

	1984 - 1990 YT SeriesLawn tractor
1984 - 1990
YT Series
Lawn tractor

Production
Manufacturer	Ingersoll
Lawn tractor

Ingersoll 116YT Engine
16HP Briggs & Stratton 656cc 2-cyl gasoline
Fuel tank	2.1 gal 7.9 L
Engine details ...

Ingersoll 116YT Transmission
5-speed gear
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station

Power Take-off (PTO)
Rear PTO	independent

Dimensions & Tires
Wheelbase	42 inches 106 cm
Weight	373 lbs 169 kg
Front tire	6.50-6
Rear tire	8.50-8
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
yard tractors published in 1985, by Ingersoll

Engine

Engine Detail — 656 cc / 40.03 ci Gasoline

Manufacturer	Briggs & Stratton 402707
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled vertical-shaft horizontally-opposed
Displacement	656 cc 40.03 ci
Bore/Stroke	2.97x2.89 inches 75 x 73 mm
Power	16 hp 11.9 kW
Starter	electric
Starter volts	12

Transmission

Transmission — Peerless

Transmission	Peerless
Type	belt-driven gear
Gears	5 forward and 1 reverse

Dimensions

Ingersoll 116YT Tires
Lawn/turf front	6.50-6
Lawn/turf rear	8.50-8

Dimensions
Wheelbase	42 inches 106 cm
Length	60.3 inches 153 cm
Width	33 inches 83 cm
Height (steering wheel)	39 inches 99 cm
Weight	373 lbs 169 kg
Ground clearance	6.2 inches 15 cm

Attachments

Attachment overview
38" mid-mount mower deck
42" mid-mount mower deck
44" mid-mount mower deck
Snowblower
Blade

Photos

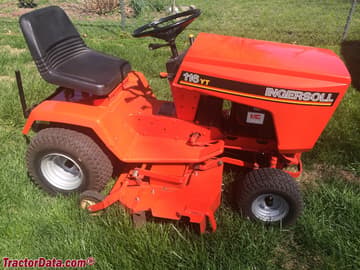

1990 Ingersoll 116YT lawn tractor.

Ingersoll 116YT lawn tractor.
