Ingersoll 1212
The Ingersoll 1212 is a tractor produced by Ingersoll Lawn Tractors. It is equipped with a 459 cc 28.04 ci engine. The listed engine power is Gasoline (listed): 12 hp / 8.9 kW. Transmission: 6 forward and 1 reverse.
Engine Power
Gasoline (listed): 12 hp / 8.9 kW
Fuel & Capacities
Gasoline
Transmission
6 forward and 1 reverse
Overview
 | 1992 - 1993 |
|---|
Production | |
|---|---|
Manufacturer | Ingersoll |
Built in Winneconne, Wisconsin, USA | |
Ingersoll 1212 Engine | |
|---|---|
12HP Briggs & Stratton 459cc 1-cyl gasoline | |
Engine details ...  |
Ingersoll 1212 Transmission | |
|---|---|
6-speed | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Engine
Engine Detail — 459 cc / 28.04 ci Gasoline
Manufacturer | Briggs & Stratton 283707 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 459 cc
28.04 ci |
Bore/Stroke | 3.438x3.06 inches
87 x 78 mm |
Power | 12 hp
8.9 kW |
Rated RPM | 3600 |
Transmission
Transmission — 6 forward and 1 reverse
Gears | 6 forward and 1 reverse |
Dimensions
Ingersoll 1212 Tires |
|---|
Dimensions |
|---|
Photos

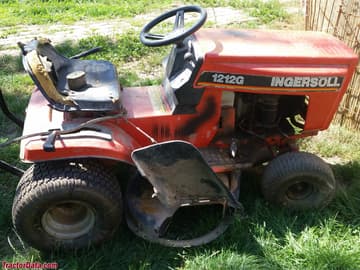

Ingersoll 1212G.
Ingersoll 1212G.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ingersoll Lawn Tractors Ingersoll 1212.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Ingersoll Lawn Tractors Ingersoll 1212 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ingersoll Lawn Tractors Ingersoll 1212.
Converted Equivalents:
Horsepower (HP)12 hp
Kilowatts (kW)8.9 kW
Metric Horsepower (PS / CV)12.2 PS
