Ingersoll 226
The Ingersoll 226 is a tractor produced by Ingersoll Lawn Tractors. It is equipped with a 709 cc 43.3 ci engine. The listed engine power is Gasoline (listed): 16 hp / 11.9 kW. Transmission: Hy-Driv. Operating weight: 715 lbs 324 kg.
Engine Power
Gasoline (listed): 16 hp / 11.9 kW
Fuel & Capacities
Gasoline
Transmission
Hy-Driv
Operating Weight
715 lbs
324 kg
Overview
 | 1984 - 1988
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Ingersoll |
Garden tractor | |
Ingersoll 226 Engine | |
|---|---|
16HP Onan 709cc 2-cyl gasoline | |
Engine details ...  |
Ingersoll 226 Transmission | |
|---|---|
hydraulic drive | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 715 lbs
324 kg |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Lawn & Garden Tractors published in 1984, by Ingersoll |
Engine
Engine Detail — 709 cc / 43.3 ci Gasoline
Manufacturer | Onan |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled |
Displacement | 709 cc
43.3 ci |
Bore/Stroke | 3.25x2.875 inches
83 x 73 mm |
Power | 16 hp
11.9 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Hy-Driv
Transmission | Hy-Driv |
Type | hydraulic drive |
Gears | infinite forward and reverse |
Dimensions
Ingersoll 226 Tires |
|---|
Dimensions | |
|---|---|
Weight | 715 lbs
324 kg |
Attachments
44" Mower deck | |
|---|---|
Type | mid-mount Ingersoll |
Cutting width | 44 inches
111 cm |
Photos

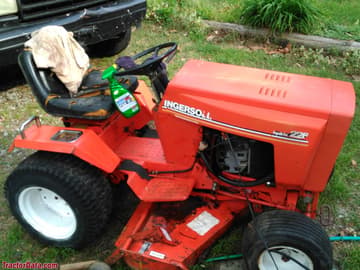

Ingersoll 226
Recommended Implements & Sizing Guide
Engineering recommendations for Ingersoll Lawn Tractors Ingersoll 226 based on its 16 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ingersoll Lawn Tractors Ingersoll 226.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Ingersoll Lawn Tractors Ingersoll 226 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ingersoll Lawn Tractors Ingersoll 226.
Converted Equivalents:
Horsepower (HP)16 hp
Kilowatts (kW)11.9 kW
Metric Horsepower (PS / CV)16.2 PS
Direct Competitor Comparison
Compare Ingersoll 226 against same-era industry alternatives in the same horsepower class.
Current Model
Ingersoll Lawn Tractors
Ingersoll 226
Engine Power:Gasoline (listed): 16 hp / 11.9 kW
★ Baseline Reference
