Ingersoll 3014

The Ingersoll 3014 is a tractor produced by Ingersoll Lawn Tractors. It is equipped with a 480 cc 29.3 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW; Gasoline (gross): 14 hp / 10.4 kW. Transmission: Hy-Drive. Operating weight: 683 lbs 309 kg.

Overview

	1989 - 1997 3000 SeriesGarden tractor 3000 Series Garden tractor

Production
Manufacturer	Ingersoll
Garden tractor
Built in Winneconne, Wisconsin, USA

Ingersoll 3014 Transmission
hydraulic drive
Transmission details ...

Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.

Capacity
Fuel	3 gal 11.4 L
Hydraulic system	1.5 gal 5.7 L

Hydraulics
Type	open center
Capacity	1.5 gal 5.7 L
Pressure	2000 psi (transmission) 137.9 bar
	575 psi (lift) 39.6 bar
Valves	2
Pump flow	8 gpm 30.3 lpm

Tractor hitch
Rear Type	0 OptOptional
Type	sleeve hitch OptOptional

Dimensions & Tires
Wheelbase	46 inches 116 cm
Weight	683 lbs 309 kg
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery CCA	230
Battery volts	12
Battery AH	32

References
Compact Tractors 3010, 3012, 3014, 4014 (8-55970) published in 1989
Compact Tractors 3012, 3014, 3016, 3018, 3018PS, 4016, 4020, 4020PS (8-59130) published in 1993

Engine

Engine options
14HP Kohler 512cc 1-cyl gasoline
14HP Briggs & Stratton 480cc 2-cyl gasoline

Engine Detail — 512 cc / 31.27 ci Gasoline

Manufacturer	Kohler M14AQS
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled
The Kohler engine was used on the 3014 through the 1990 production year.
Displacement	512 cc 31.27 ci
Bore/Stroke	3.50x3.25 inches 89 x 83 mm
Power (gross)	14 hp 10.4 kW
Compression	7:1
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	2 qts 1.9 L
Sparkplug	Champion RH10
Sparkplug gap	0.035 inches 0.889 mm
Intake valve clearance	0.009 inches (cold) 0.229 mm
Exhaust valve clearance	0.018 inches (cold) 0.457 mm

Engine Detail — 480 cc / 29.3 ci Gasoline

Manufacturer	Briggs & Stratton 294447
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft
The Briggs Vanguard engine was used on the 3014 beginning in 1991, tractor serial number 14146700.
Displacement	480 cc 29.3 ci
Bore/Stroke	2.677x2.60 inches 68 x 66 mm
Power (gross)	14 hp 10.4 kW
Rated RPM	3600
Starter	electric
Starter volts	12
Sparkplug	Champion RC12YC
Sparkplug gap	0.030 inches 0.762 mm
Intake valve clearance	0.005 inches (cold) 0.127 mm
Exhaust valve clearance	0.005 inches (cold) 0.127 mm

Transmission

Transmission — Hy-Drive

Transmission	Hy-Drive
Type	hydraulic drive
Gears	infinite forward and reverse (2-range)

Dimensions

Ingersoll 3014 Tires

Dimensions
Wheelbase	46 inches 116 cm
Length	65 inches 165 cm
Width	37 inches 93 cm
Height (steering wheel)	40 inches 101 cm
Height (hood)	35.5 inches 90 cm
Weight	683 lbs 309 kg
Clearance (rear axle)	7.2 inches 18 cm
Front tread	28.75 inches 73 cm
Rear tread	27.75 inches 70 cm

Attachments

Attachment overview
42" mid-mount mower deck
44" mid-mount mower deck
48" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

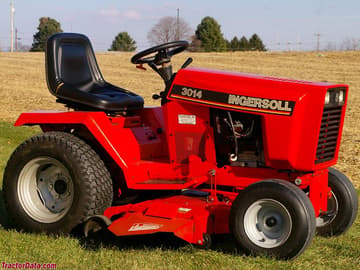

Ingersoll 3014, right side.
