Ingersoll 4016

The Ingersoll 4016 is a tractor produced by Ingersoll Lawn Tractors. It is equipped with a 480 cc 29.3 ci engine. The listed engine power is Gasoline (gross): 16 hp / 11.9 kW; Gasoline (gross): 16 hp / 11.9 kW. Transmission: Hy-drive. Operating weight: 765 lbs 347 kg.

Overview

	1989 - 2004 4000 SeriesGarden tractor 4000 Series Garden tractor

Production
Manufacturer	Ingersoll
Garden tractor
Built in Winneconne, Wisconsin, USA

Mechanical
Two-wheel drive
Manual steering
Open operator station.

Hydraulics
Type	open center
Pressure	2100 psi (transmission) 144.8 bar
	575 psi (lift) 39.6 bar
Valves	2
Pump flow	8 gpm 30.3 lpm

Tractor hitch
Rear Type	0 OptOptional

Dimensions & Tires
Wheelbase	48 inches 121 cm
Weight	765 lbs 347 kg
Front tire	16x6.50-8
Rear tire	32x8-16
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	20
Charging volts	12
Battery CCA	300
Battery volts	12

References
Compact Tractors 3012, 3014, 3016, 3018, 3018PS, 4016, 4020, 4020PS (8-59130) published in 1993

Engine

Engine options
16HP Onan 709cc 2-cyl gasoline
16HP Briggs & Stratton 480cc 2-cyl gasoline

Engine Detail — 709 cc / 43.3 ci Gasoline

Manufacturer	Onan P216
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled horizontal-shaft horizontally-opposed
The Onan P216 was the original engine in the Ingersoll 4016, used through 1992.
Displacement	709 cc 43.3 ci
Bore/Stroke	3.25x2.875 inches 83 x 73 mm
Power (gross)	16 hp 11.9 kW
Compression	6.5:1
Rated RPM	3600
Starter	electric
Starter volts	12
Sparkplug	Champion RS14YC
Sparkplug gap	0.025 inches 0.635 mm
Intake valve clearance	0.005 inches (cold) 0.127 mm
Exhaust valve clearance	0.013 inches (cold) 0.330 mm

Engine Detail — 480 cc / 29.3 ci Gasoline

Manufacturer	Briggs & Stratton 303777
Fuel Type	Gasoline
Configuration	2-cylinder, air-cooled
The Briggs & Stratton engine was used in the 4016 starting in 1993.
Displacement	480 cc 29.3 ci
Bore/Stroke	2.677x2.60 inches 68 x 66 mm
Power (gross)	16 hp 11.9 kW
Rated RPM	3600
Starter	electric
Starter volts	12
Sparkplug	Champion RC12YC
Sparkplug gap	0.030 inches 0.762 mm

Transmission

Transmission — Hy-drive

Transmission	Hy-drive
Gears	infinite forward and reverse (2-range)

Dimensions

Ingersoll 4016 Tires
Lawn/turf front	16x6.50-8
Lawn/turf rear	32x8-16

Dimensions
Wheelbase	48 inches 121 cm
Length	72 inches 182 cm
Width	41 inches 104 cm
Height (steering wheel)	43.5 inches 110 cm
Height (hood)	38.5 inches 97 cm
Weight	765 lbs 347 kg
Clearance (rear axle)	11 inches 27 cm
Front tread	33.5 inches 85 cm
Rear tread	31.5 inches 80 cm

Attachments

Attachment overview
44" mid-mount mower deck
48" mid-mount mower deck
60" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

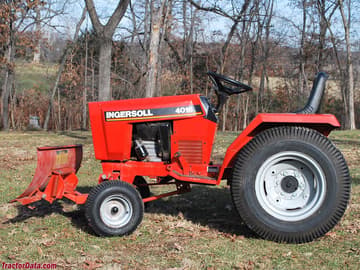

1997 Ingersoll 4016 with 48-inch front blade.

1997 Ingersoll 4016 with 48-inch front blade.
