Ingersoll 4116
The Ingersoll 4116 is a tractor produced by Ingersoll Lawn Tractors. It is equipped with a 709 cc 43.3 ci engine. The listed engine power is Gasoline (listed): 16 hp / 11.9 kW. Transmission: Hy-Drive. Operating weight: 725 lbs 328 kg.
Engine Power
Gasoline (listed): 16 hp / 11.9 kW
Fuel & Capacities
3 gal
11.4 L
Transmission
Hy-Drive
Operating Weight
725 lbs
328 kg
Overview
 | 1992
4100 SeriesGarden tractor
4100 Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Ingersoll |
Garden tractor | |
Ingersoll 4116 Engine | |
|---|---|
16HP Onan 709cc 2-cyl gasoline | |
Engine details ...  |
Ingersoll 4116 Transmission | |
|---|---|
hydraulic drive | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Open operator station. |
Capacity | |
|---|---|
Fuel | 3 gal
11.4 L |
Hydraulic system | 1.5 gal
5.7 L |
Hydraulics | |
|---|---|
Type | open center |
Capacity | 1.5 gal
5.7 L |
Pressure | 575 psi
39.6 bar |
Total flow | 11.5 gpm
43.5 lpm |
Steering press. | 720 psi
49.6 bar |
Dimensions & Tires | |
|---|---|
Wheelbase | 48 inches
121 cm |
Weight | 725 lbs
328 kg |
Front tire | 16x6.50-8 |
Rear tire | 8.00-16 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | flywheel alternator |
Charging amps | 20 |
Battery CCA | 300 |
Battery volts | 12 |
References | |
|---|---|
 | |
Operator;s Manual Compact Tractors 3118, 4116, 4118, 4120 (8-56800) published in 1992 |
Engine
Engine Detail — 709 cc / 43.3 ci Gasoline
Manufacturer | Onan P216G |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled horizontal-shaft opposed twin |
Displacement | 709 cc
43.3 ci |
Bore/Stroke | 3.25x2.875 inches
83 x 73 mm |
Power | 16 hp
11.9 kW |
Rated RPM | 3600 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 1.8 qts
1.7 L |
Transmission
Transmission — Hy-Drive
Transmission | Hy-Drive |
Type | hydraulic drive |
Gears | infinite forward and reverse (2-range) |
 | |
Dimensions
Ingersoll 4116 Tires | |
|---|---|
Lawn/turf front | 16x6.50-8 |
Lawn/turf rear | 8.00-16 |
Dimensions | |
|---|---|
Wheelbase | 48 inches
121 cm |
Length | 72 inches
182 cm |
Width | 41 inches
104 cm |
Height (steering wheel) | 43.5 inches
110 cm |
Height (hood) | 38.5 inches
97 cm |
Weight | 725 lbs
328 kg |
Ground clearance | 11 inches
27 cm |
Front tread | 33.5 inches
85 cm |
Rear tread | 31.5 inches
80 cm |
Photos

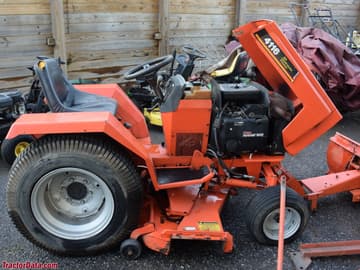

Ingersoll 4116
Recommended Implements & Sizing Guide
Engineering recommendations for Ingersoll Lawn Tractors Ingersoll 4116 based on its 16 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Ingersoll Lawn Tractors Ingersoll 4116.
Estimated Continuous Field Runtime: 3.6 hrs
Approximately 3.6 hours of continuous field operation at ~75% rated power on a full tank (3 gal / 11.4 L).
Estimated 75% Load Fuel Burn~0.8 gal/hr (3.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Ingersoll Lawn Tractors Ingersoll 4116 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Ingersoll Lawn Tractors Ingersoll 4116.
Converted Equivalents:
Horsepower (HP)16 hp
Kilowatts (kW)11.9 kW
Metric Horsepower (PS / CV)16.2 PS
Direct Competitor Comparison
Compare Ingersoll 4116 against same-era industry alternatives in the same horsepower class.
Current Model
Ingersoll Lawn Tractors
Ingersoll 4116
Engine Power:Gasoline (listed): 16 hp / 11.9 kW
★ Baseline Reference
