International Harvester 140

The International Harvester 140 is a tractor produced by International Harvester. It is equipped with a 122.7 ci 2.0 L engine. The listed engine power is Gasoline (net): 25 hp / 18.6 kW; Gasoline (gross): 28 hp / 20.9 kW. Transmission: 4 forward and 1 reverse. Operating weight: 2700 to 3000 pounds.

Overview

	1958 - 1979

Production
Manufacturer	International Harvester
Total built	66,290
Original price was $8,200 in 1979
The International 140 began as the industrial version of the Farmall 140. Industrial tractors had heavier front axles and foot-operated throttles, among other options. As the Farmall and International brands were merged the differences simply became options that the buyer could order.

International Harvester 140 Engine
International Harvester 2.0L 4-cyl gasoline
Engine details ...

International Harvester 140 Transmission
4-speed sliding gear
Transmission details ...

International Harvester 140 Power
Engine (gross)	28 hp 20.9 kW
Engine (net)	25 hp 18.6 kW
PTO (claimed)	21 hp 15.7 kW
Drawbar (tested)	21.25 hp 15.8 kW
Belt (tested)	23.02 hp 17.2 kW
Performance test details ...

Mechanical
Two-wheel drive
Steering	manual worm-and-sector
Differential mechanical contracting band brakes
Open operator station.

Capacity
Fuel	11 gal 41.6 L
Hydraulic system	3.38 gal 12.8 L

Hydraulics
Type	IH Touch-Control
Capacity	3.38 gal 12.8 L
Total flow	4.6 gpm 17.4 lpm

Tractor hitch
Type	IH Fast Hitch (one-point)

Power Take-off (PTO)
Rear PTO	transmission
Rear PTO Type	540

Dimensions & Tires
Wheelbase	71 inches 180 cm
Weight	2700 to 3000 pounds
Front tire	5.00-15
Rear tire	9.5-24
Full dimensions and tires ...

Electrical
Ground	positive (6V)
	negative (12V)
Charging system	generator (early)
	alternator (late)
Battery volts	6 (early)
	12 (late)

References
Farm Loaders published in 1962, by International Harvester
Farm Loaders published in 1965, by International Harvester
Farm Loaders published in 1970, by International Harvester
Spring 1968 Buyer's Guide published by International Harvester
Spring 1969 Buyer's Guide published by International Harvester
Spring 1970 Buyer's Guide published by International Harvester
Spring 1971 Buyer's Guide published by International Harvester
1978 Buyer's Guide published by International Harvester
1979 Buyer's Guide published by International Harvester

Engine

Engine Detail — 122.7 ci / 2.0 L Gasoline

Manufacturer	International Harvester C-123
Fuel Type	Gasoline
Configuration	4-cylinder, liquid-cooled vertical I-head
Displacement	122.7 ci 2.0 L
Bore/Stroke	3.125x4.00 inches 79 x 102 mm
Power (net)	25 hp 18.6 kW
Power (gross)	28 hp 20.9 kW
Air cleaner	oil bath
Compression	6.94:1
Rated RPM	1400
Torque	106 lb-ft 143.7 Nm
Torque RPM	1400
Firing order	1-3-4-2
Starter volts	6 (early)
	12 (late)
Oil capacity	5 qts 4.7 L
Coolant capacity	15 qts 14.2 L

Transmission

Transmission — 4 forward and 1 reverse sliding gear

Type	sliding gear
Gears	4 forward and 1 reverse
Clutch	single 9-inch dry disc
Oil capacity	5 qts 4.7 L

Dimensions

International Harvester 140 Tires
Ag front	5.00-15
Ag rear	9.5-24
Ag front	6.00-16
Ag rear	11.2-24
Lawn/turf rear	12.4-24

Dimensions
Wheelbase	71 inches 180 cm
Length	107 inches 271 cm
Width	56 inches 142 cm
Height (steering wheel)	65.5 inches 166 cm
Shipping weight	2700 lbs 1224 kg
Operating weight	3000 lbs 1360 kg
Ground clearance	22.3 inches 56 cm
Front tread	40 to 58 inches 101 to 147 cm
Rear tread	40 to 68 inches 101 to 172 cm

Tests

Nebraska Tractor Test 666
Gasoline 4-speed 2WD September 3 - 18, 1958 Link: Nebraska Tractor Test 666 file
Belt power (max)	23.02 hp 17.2 kW
Belt fuel use (max)	2.0 gal/hour 7.6 l/hour
Drawbar performance
Max power	21.25 hp 15.8 kW
Fuel use	2.0 gal/hour 7.6 l/hour
Gear 2 used for power test.
Max pull	3,611 lbs 1637 kg
Gear 1 used for pull test.

Photos

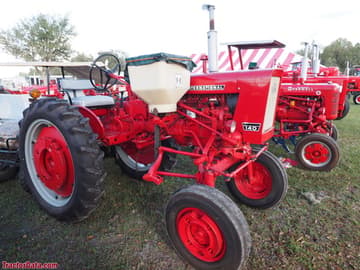

International Harvester 140
