International Harvester 254
The International Harvester 254 is a tractor produced by International Harvester. It is equipped with a 64.75 ci 1.1 L engine. The listed engine power is Diesel (listed): 24 hp / 17.9 kW. Transmission: 9 forward and 3 reverse. Operating weight: 1760 lbs 798 kg.
Engine Power
Diesel (listed): 24 hp / 17.9 kW
Fuel & Capacities
5.5 gal
20.8 L
Transmission
9 forward and 3 reverse
Operating Weight
1760 lbs
798 kg
Overview
 | 1982 - 1984
Compact Utility tractorMitsubishi built
Compact Utility tractor
Mitsubishi built |
|---|
Production | |
|---|---|
Distributor | International Harvester |
Manufacturer | Mitsubishi |
Compact Utility tractor | |
Built in Japan | |
Original price was $8,000 in 1984 | |
International Harvester 254 Engine | |
|---|---|
Mitsubishi 1.1L 3-cyl diesel | |
Engine details ...  |
International Harvester 254 Transmission | |
|---|---|
9-speed gear | |
Transmission details ...  |
International Harvester 254 Power | |
|---|---|
Engine | 24 hp
17.9 kW |
PTO (claimed) | 21 hp
15.7 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Two-post ROPS, canopy optional. |
Capacity | |
|---|---|
Fuel | 5.5 gal
20.8 L |
Hydraulic system | 6.6 gal
25.0 L |
Hydraulics | |
|---|---|
Capacity | 6.6 gal
25.0 L |
Pump flow | 4.2 gpm
15.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | 1 |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live |
Rear PTO Type | 540/1250 |
Dimensions & Tires | |
|---|---|
Wheelbase | 60 inches
152 cm |
Weight | 1760 lbs
798 kg |
Front tire | 5.00-15 |
Rear tire | 11.2-24 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Buyer's Guide 1982 published by International Harvester | |
200 Series Tractors published by International Harvester | |
New International Tractors published by International Harvester |
Engine
Engine Detail — 64.75 ci / 1.1 L Diesel
Manufacturer | Mitsubishi |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 64.75 ci
1.1 L |
Bore/Stroke | 2.99x3.07 inches
76 x 78 mm |
Power | 24 hp
17.9 kW |
Rated RPM | 2800 |
Starter volts | 12 |
Oil capacity | 4.4 qts
4.2 L |
Coolant capacity | 5.2 qts
4.9 L |
Transmission
Transmission — 9 forward and 3 reverse gear
Type | gear |
Gears | 9 forward and 3 reverse |
Oil capacity | 26.4 qts
25.0 L |
Three gears, plus reverse, in three ranges. | |
With 11.2-24 rear tires. | |
 | |
Dimensions
International Harvester 254 Tires | |
|---|---|
Ag front | 5.00-15 |
Ag rear | 11.2-24 |
Dimensions | |
|---|---|
Wheelbase | 60 inches
152 cm |
Length | 113 inches (with 3-point)
287 cm |
Width | 45.7 inches (min)
116 cm |
Height (steering wheel) | 53.9 inches
136 cm |
2WD Shipping weight | 1760 lbs
798 kg |
Ground clearance | 14.2 inches
36 cm |
Photos

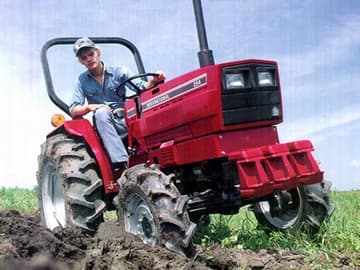

International Harvester 254
Recommended Implements & Sizing Guide
Engineering recommendations for International Harvester 254 based on its 24 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for International Harvester 254.
Estimated Continuous Field Runtime: 4.4 hrs
Approximately 4.4 hours of continuous field operation at ~75% rated power on a full tank (5.5 gal / 20.8 L).
Estimated 75% Load Fuel Burn~1.2 gal/hr (4.7 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
International Harvester 254 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for International Harvester 254.
Converted Equivalents:
Horsepower (HP)24 hp
Kilowatts (kW)17.9 kW
Metric Horsepower (PS / CV)24.3 PS
Direct Competitor Comparison
Compare International Harvester 254 against same-era industry alternatives in the same horsepower class.
Current Model
International Harvester
International Harvester 254
Engine Power:Diesel (listed): 24 hp / 17.9 kW
★ Baseline Reference
