International Harvester 523
The International Harvester 523 is a tractor produced by International Harvester. It is equipped with a 179 ci 2.9 L engine. The listed engine power is Diesel (listed): 52 hp / 38.8 kW; Diesel (listed): 4 hp / 3.0 kW. Transmission: Agriomatic S. Operating weight: 5380 to 6295 pounds.
Engine Power
Diesel (listed): 52 hp / 38.8 kW; Diesel (listed): 4 hp / 3.0 kW
Fuel & Capacities
18.5 gal
70.0 L
Transmission
Agriomatic S
Operating Weight
5380 to 6295 pounds
Overview
 | 1965 - 1972
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | International Harvester |
Utility tractor | |
Built in Neuss, Germany | |
International Harvester 523 Engine | |
|---|---|
International Harvester 2.9L 3-cyl diesel | |
Engine details ...  |
International Harvester 523 Power | |
|---|---|
Engine | 52 hp
38.8 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Differential lock | mechanical rear |
Manual steering | |
Disc brakes | |
Open operator station. | |
Capacity | |
|---|---|
Fuel | 18.5 gal
70.0 L |
Hydraulic system | 4.3 gal
16.3 L |
Hydraulics | |
|---|---|
Capacity | 4.3 gal
16.3 L |
Pump flow | 7.5 gpm
28.4 lpm |
Tractor hitch | |
|---|---|
Rear Type | II/I |
Rear lift | 3748 lbs
1700 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
540/1000 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 78.74 inches
199 cm |
Weight | 5380 to 6295 pounds |
Front tire | 6.00-16 |
Rear tire | 11x32 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | generator |
Charging amps | 10.8 |
Battery AH | 135 |
References | |
|---|---|
 | |
World Wide Farm Equipment Buyer's Guide published in 1968, by International Harvester* | |
523 published by International Harvester | |
*Publication contains known errors. |
Engine
Engine Detail — 179 ci / 2.9 L Diesel
Manufacturer | International Harvester D-179 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 179 ci
2.9 L |
Bore/Stroke | 3.875x5.0625 inches
98 x 129 mm |
Power | 52 hp
38.8 kW |
Fuel system | direct injection |
Air cleaner | oil bath |
Rated RPM | 2100 |
Starter | electric |
Starter volts | 12 |
Starter power | 4 hp
3.0 kW |
Oil capacity | 6.8 qts
6.4 L |
Coolant capacity | 16.3 qts
15.4 L |
Transmission
Transmission options | |
|---|---|
8-speed | |
12-speed partial power shift |
Transmission — 8 forward and 4 reverse
Gears | 8 forward and 4 reverse |
Clutch | 279.4mm dry disc |
Oil capacity | 35.1 qts
33.2 L |
Four gears (1-4) in two ranges (low/high) plus reverse range. | |
With 11x32 rear tires. | |
 | |

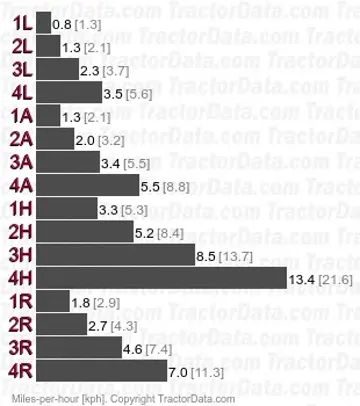

Transmission — Agriomatic S
Transmission | Agriomatic S |
Type | partial power shift |
Gears | 12 forward and 4 reverse |
The Agriomatic S provides an additional four forward speeds selected by a right-hand power shift lever. Pushing the lever forward engages the Agriomatic range, while rearward uses the conventional range. The Agriomatic speeds are between high and low ranges, so this provides an undershift in high range and an overshift in low range. In reverse range it operates as a power shuttle. | |
With 11x32 rear tires. | |
 | |
Dimensions
International Harvester 523 Tires | |
|---|---|
Ag front | 6.00-16 |
9.5-24 (4WD) | |
Ag rear | 11x32 |
12.4-32 | |
16.9-30 (4WD) | |
Dimensions | |
|---|---|
Wheelbase | 78.74 inches
199 cm |
Length | 119.8 inches
304 cm |
Width | 63.8 inches
162 cm |
Height (steering wheel) | 59.8 inches
151 cm |
Height (exhaust) | 86.2 inches
218 cm |
2WD Weight | 5380 lbs
2440 kg |
4WD Weight | 6295 lbs
2855 kg |
Clearance (front axle) | 15 inches
38 cm |
Clearance (drawbar) | 12 inches
30 cm |
Photos
McCormick International 523, left side.
International 523, right side.
International 523 with loader.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for International Harvester 523.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
