International Harvester B-414

The International Harvester B-414 is a tractor produced by International Harvester. It is equipped with a 153.9 ci 2.5 L engine. The listed engine power is Gasoline (listed): 43.5 hp / 32.4 kW; Diesel (listed): 43.5 hp / 32.4 kW. Transmission: Reverser. Operating weight: 3600 to 4050 pounds.

Overview

	1961 - 1966 Utility tractor

Production
Manufacturer	International Harvester
Utility tractor
Built in Bradford, England
Original price was $2,900 in 1967

International Harvester B-414 Transmission
8-speed
Transmission details ...

International Harvester B-414 Power
Engine	43.5 hp 32.4 kW
Drawbar (claimed)	31 hp 23.1 kW
PTO (claimed)	35 hp 26.1 kW
Drawbar (tested)	31.73 hp 23.7 kW
PTO (tested)	36.46 hp 27.2 kW
Performance test details ...

Mechanical
Two-wheel drive
Steering	manual
	power optional
Independent mechanical disc brakes
Open operator station.

Capacity
Fuel	12.7 gal 48.1 L
Hydraulic system	3 gal 11.4 L

Hydraulics
Capacity	3 gal 11.4 L
Total flow	6.9 gpm 26.1 lpm
	9.1 gpm*With power steering 34.4 lpm

Tractor hitch
Rear Type	1

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	540

Dimensions & Tires
Wheelbase	76.5 inches 194 cm
Weight	3600 to 4050 pounds
Front tire	6.00-16
Rear tire	13.6-28
Full dimensions and tires ...

Electrical
Ground	positive
Charging system	generator
Charging amps	17
Batteries	1 (gas)
	2 (diesel)
Battery volts	12 (gas)
	6 (diesel)

References
Industrial Tractors & Equipment Buyers Guide published in 1962, by International Harvester
Farm Loaders published in 1962, by International Harvester
Farm Loaders published in 1965, by International Harvester
Farm Loaders published in 1970, by International Harvester
B-414 tractor published in 1962, by International Harvester

Engine

Engine options
International Harvester 2.3L 4-cyl gasoline
International Harvester 2.5L 4-cyl diesel

Engine Detail — 143.1 ci / 2.3 L Gasoline

Manufacturer	International Harvester BC-144
Fuel Type	Gasoline
Configuration	4-cylinder, liquid-cooled
Displacement	143.1 ci 2.3 L
Bore/Stroke	3.375x4.00 inches 86 x 102 mm
Power	43.5 hp 32.4 kW
Air cleaner	oil bath
Compression	6.3:1
Rated RPM	2000
Torque	116 lb-ft 157.3 Nm
Torque RPM	1300
Firing order	1-3-4-2
Starter volts	12
Oil capacity	5 qts 4.7 L
Coolant capacity	10 qts 9.5 L

Engine Detail — 153.9 ci / 2.5 L Diesel

Manufacturer	International Harvester BD-154
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	153.9 ci 2.5 L
Bore/Stroke	3.50x4.00 inches 89 x 102 mm
Power	43.5 hp 32.4 kW
Air cleaner	oil bath
Compression	22.6:1
Rated RPM	2000
Torque	113 lb-ft 153.2 Nm
Torque RPM	1400
Firing order	1-3-4-2
Starter volts	12
Oil capacity	5 qts 4.7 L
Coolant capacity	10 qts 9.5 L

Transmission

Transmission — sliding gear

Transmission	sliding gear
Gears	8 forward and 2 reverse
Clutch	dry disc
Oil capacity	20 qts 18.9 L
Four forward gears plus reverse with high and low ranges.
With 13.6-28 rear tires.

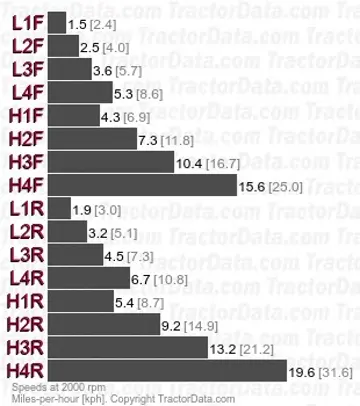

Transmission — Reverser

Transmission	Reverser
Gears	8 forward and reverse
Oil capacity	20 qts 18.9 L
Four gears with high and low ranges plus reverser.
With 13.6-28 rear tires.

Dimensions

International Harvester B-414 Tires
Ag front	6.00-16
Ag rear	13.6-28
Ag rear	14.9-24

Dimensions
Wheelbase	76.5 inches 194 cm
Length	117 inches 297 cm
Width	64 inches (min) 162 cm
	90 inches (max) 228 cm
Height (steering wheel)	60.6 inches 153 cm
Clearance (front axle)	18.7 inches 47 cm
Clearance (rear axle)	16.7 inches 42 cm

International Harvester B-414 Weight
Shipping	3600 lbs 1632 kg
Operating	4050 lbs 1837 kg
Ballasted	6715 lbs 3045 kg

Tests

Tractor Tests
NTTL 817: gasoline 8-speed 2WD
NTTL 827: diesel 8-speed 2WD

Nebraska Tractor Test 817
Gasoline 8-speed 2WD May 3 - 18, 1962 Link: Nebraska Tractor Test 817 file
PTO performance
Power at rated engine speed	36.46 hp 27.2 kW
Fuel use	3.0 gal/hour 11.4 l/hour
Drawbar performance
Max power	30.86 hp 23.0 kW
Fuel use	3.0 gal/hour 11.4 l/hour
Gear 4L used for power test.
Max pull	4984 lbs 2260 kg
Gear 2L used for pull test.

Nebraska Tractor Test 827
Diesel 8-speed 2WD September 27 - October 12, 1962 Link: Nebraska Tractor Test 827 file
PTO performance
Power at rated engine speed	35.99 hp 26.8 kW
Fuel use	2.5 gal/hour 9.5 l/hour
Drawbar performance
Max power	31.73 hp 23.7 kW
Fuel use	2.6 gal/hour 9.8 l/hour
Gear 4L used for power test.
Max pull	5089 lbs 2308 kg
Gear 2L used for pull test.

Attachments

Attachment overview
International Harvester 1501 loader
International Harvester 2001 loader

Photos

International Harvester B-414

International B-414 operator station and controls.

International B-414 with 1501 front-end loader.
