International Harvester 733

The International Harvester 733 is a tractor produced by International Harvester. It is equipped with a 206.4 ci 3.4 L engine. The rated power output is 59 hp 44.0 kW. Transmission: Synchron. Operating weight: 5203 to 5952 pounds.

Overview

	1980 - 1990 33 SeriesUtility tractor
1980 - 1990
33 Series
Utility tractor

Production
Manufacturer	International Harvester
Utility tractor
Built in Neuss, Germany

Variants
733	utility
733E	narrow

International Harvester 733 Engine
International Harvester 3.4L 4-cyl diesel
Engine details ...

International Harvester 733 Power
Engine	59 hp 44.0 kW

Mechanical
Two- or four-wheel drive
Differential lock	mechanical rear
2WD Steering	manual
4WD Steering	power
Hydraulic disc brakes
Four-post ROPS. Cab optional with heat.

Capacity
Fuel	15.85 gal 60.0 L
Hydraulic system	3.2 gal 12.1 L

Hydraulics
Capacity	3.2 gal 12.1 L
Pump flow	8.5 gpm 32.2 lpm

Tractor hitch
Rear Type	II
Rear lift	4630 lbs 2100 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540

Dimensions & Tires
2WD Wheelbase	86.2 inches 218 cm
4WD Wheelbase	84.6 inches 214 cm
Weight	5203 to 5952 pounds
Front tire	7.50-16
2WD Rear tire	13.6/12x36
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	33
Charging volts	14
Battery volts	12
Battery AH	88

References
733 published by International Harvester
733 published by Case IH

Engine

Engine Detail — 206.4 ci / 3.4 L Diesel

Manufacturer	International Harvester D-206
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	206.4 ci 3.4 L
Bore/Stroke	3.875x4.375 inches 98 x 111 mm
Power	59 hp 44.0 kW
Fuel system	direct injection
Air cleaner	dry
Rated RPM	2180
Torque	154 lb-ft 208.8 Nm
Torque RPM	1600
Starter volts	12
Oil capacity	9.5 qts 9.0 L
Coolant capacity	18.5 qts 17.5 L

Transmission

Transmission options
8-speed
16-speed
16-speed creeper

Transmission — 8 forward and 4 reverse

Gears	8 forward and 4 reverse
Clutch	280mm dry disc
Four gears (1-4) in two ranges, plus reverse range.
With 13.6-36 rear tires.

Transmission — Synchron

Transmission	Synchron
Gears	16 forward and 8 reverse

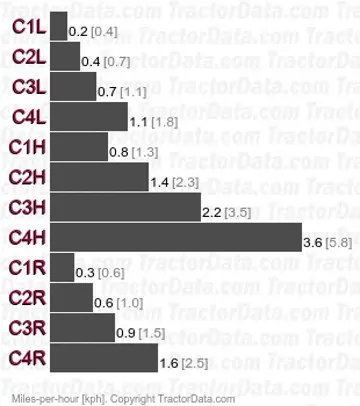

Type	creeper
Gears	16 forward and 8 reverse
With 13.6-36 rear tires.

Dimensions

International Harvester 733 Tires
2WD Standard tires (ag)	Front: 7.50-16. Rear: 13.6/12x36
4WD Standard tires (ag)	Front: 10.5x20. Rear: 13.6/12x36

Dimensions
2WD Wheelbase	86.2 inches 218 cm
4WD Wheelbase	84.6 inches 214 cm
Length	141.5 inches 359 cm
Width	64.6 inches 164 cm
2WD Height (steering wheel)	60 inches 152 cm
4WD Height (steering wheel)	69.8 inches 177 cm
Clearance (front axle)	20.9 inches 53 cm
2WD Front tread	48.5 to 69.7 inches 123 to 177 cm
4WD Front tread	54.1 to 63.9 inches 137 to 162 cm
2WD Rear tread	56.2 to 74.8 inches 142 to 189 cm
4WD Rear tread	50.4 to 74.8 inches 128 to 189 cm

International Harvester 733 Weight
2WD ROPS	5203 lbs 2360 kg
4WD ROPS	5512 lbs 2500 kg
2WD Cab	5368 lbs 2434 kg
4WD Cab	5952 lbs 2699 kg
