AGCO Allis 5650

The AGCO Allis 5650 is a tractor produced by Agco Allis. It is equipped with a 183 ci 3.0 L engine. The rated power output is 46.9 hp 35.0 kW. Transmission: 16 forward and 8 reverse. Operating weight: 4500 lbs 2041 kg.

Overview

	1994 - 1999 5600 SeriesSAME built
1994 - 1999
5600 Series
SAME built

1994 - 1999
5600 Series
SAME built

Production
Distributor	AGCO Allis
Manufacturer	SAME
Built in Italy
Original price was $22,000 in 1999

Variants
Argon 50	similar SAME model

AGCO Allis 5650 Engine
SLH 3.0L 3-cyl diesel
Fuel tank	15 gal 56.8 L
Engine details ...

AGCO Allis 5650 Power
Drawbar (claimed)	43.8 hp 32.7 kW
PTO (claimed)	47.8 hp 35.6 kW
Drawbar (tested)	43.8 hp 32.7 kW
PTO (tested)	46.9 hp 35.0 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Two-post ROPS.

Hydraulics
Type	open center
Valves	2
Pump flow	11.9 gpm 45.0 lpm

Tractor hitch
Rear Type	II
Rear lift (at 24"/610mm)	4163 lbs 1888 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@2079

Dimensions & Tires
2WD Wheelbase	77.8 inches 197 cm
4WD Wheelbase	75.8 inches 192 cm
Weight	4500 lbs 2041 kg
Front tire	6.50-16
Rear tire	13.6R28
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
5600 Series published in 1990, by AGCO

Engine

	1994 - 1999 5600 SeriesSAME built
1994 - 1999
5600 Series
SAME built

1994 - 1999
5600 Series
SAME built

Engine Detail — 183 ci / 3.0 L Diesel

Manufacturer	SLH 1000.3
Fuel Type	Diesel
Configuration	3-cylinder, air-cooled inline
Displacement	183 ci 3.0 L
Bore/Stroke	4.13x4.55 inches 105 x 116 mm
Pre-heating	thermostart
Compression	17:1
Rated RPM	2350
Starter volts	12

Transmission

	1994 - 1999 5600 SeriesSAME built
1994 - 1999
5600 Series
SAME built

1994 - 1999
5600 Series
SAME built

Transmission options
12-speed sync shuttle
16-speed

Transmission — 12 forward and reverse sync shuttle

Type	sync shuttle
Gears	12 forward and reverse
Four gears (1-4) in three ranges (low, medium, high) with synchronized shuttle. Gear shifts are synchronized.
With 13.6R28 rear tires. Reverse speeds are 8% slower than forward speeds.

Transmission — 16 forward and 8 reverse

Gears

16 forward and 8 reverse

Dimensions

	1994 - 1999 5600 SeriesSAME built
1994 - 1999
5600 Series
SAME built

1994 - 1999
5600 Series
SAME built

AGCO Allis 5650 Tires
Ag front	6.50-16
Ag rear	13.6R28

Dimensions
2WD Wheelbase	77.8 inches 197 cm
4WD Wheelbase	75.8 inches 192 cm
Length	133 inches 337 cm
Width	66.7 inches 169 cm
Height	87.9 inches 223 cm
Weight	4500 lbs 2041 kg
2WD Front tread	48.4 to 60.2 inches 122 to 152 cm
4WD Front tread	52.7 to 68.5 inches 133 to 173 cm
Rear tread	51.2 to 66.9 inches 130 to 169 cm

Tests

	1994 - 1999 5600 SeriesSAME built
1994 - 1999
5600 Series
SAME built

1994 - 1999
5600 Series
SAME built

OCED Tractor Test 1497
Diesel 12-speed 4WD July 1993 - September 1993, Link: OCED Tractor Test 1497 file
PTO performance
Power at rated engine speed	46.9 hp 35.0 kW
Fuel use	2.8 gal/hour 10.6 l/hour
Power at rated PTO speed	46.7 hp 34.8 kW
Fuel use	2.7 gal/hour 10.2 l/hour
Drawbar performance
Max power	43.8 hp 32.7 kW
Fuel use	3.5 gal/hour 13.2 l/hour
Gear 4N used for power test.
Max pull	4385 lbs 1989 kg
Gear 3N used for pull test.

Photos

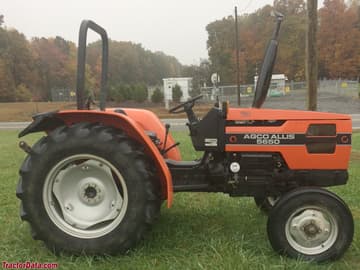

AGCO Allis 5650

AGCO Allis 5650
