International Harvester 756

The International Harvester 756 is a tractor produced by International Harvester. It is equipped with a 291 ci 4.8 L engine. The rated power output is 101 hp 75.3 kW. Transmission: Torque Amplifier. Operating weight: 8400 lbs 3810 kg.

Overview

	1967 - 1971	1967 - 1971

Production
Manufacturer	International Harvester
Factories	Geelong, Australia
	Rock Island, Illinois, USA
Original price was $8,300 in 1971

Variants
Farmall 756	row-crop tractor

International Harvester 756 Transmission
16-speed two-speed power shift
Transmission details ...

International Harvester 756 Power
Engine	101 hp 75.3 kW
Drawbar (claimed)	69 hp 51.5 kW
PTO (claimed)	76 hp 56.7 kW

Mechanical
Two- or four-wheel drive
Power steering
Open operator station. Cab optional.

Hydraulics
Type	open center
Pump flow	12 gpm 45.4 lpm

Tractor hitch
Rear Type	II

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@2100
	1000@2100

Dimensions & Tires
Wheelbase	101 inches 256 cm
Weight	8400 lbs 3810 kg
Front tire	7.50-18
Rear tire	18.4-30
Full dimensions and tires ...

References
Spring 1968 Buyer's Guide published by International Harvester
Summer-Fall 1968 Buyer's Guide published by International Harvester
World Wide Farm Equipment Buyer's Guide published in 1968, by International Harvester*
Spring 1971 Buyer's Guide published by International Harvester
756-856 Tractors published by International Harvester
Farm Equipment Reference Catalog published in 1970, by International Harvester
*Publication contains known errors.

Engine

Engine options
Interntional Harvester 5.1L 6-cyl diesel
International Harvester 4.8L 6-cyl gasoline

Engine Detail — 310 ci / 5.1 L Diesel

Manufacturer	Interntional Harvester D-310
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	310 ci 5.1 L
Bore/Stroke	3.875x4.375 inches 98 x 111 mm
Power	101 hp 75.3 kW
Rated RPM	2300
Oil capacity	12 qts 11.4 L
Coolant capacity	23.5 qts 22.2 L

Engine Detail — 291 ci / 4.8 L Gasoline

Manufacturer	International Harvester C-291
Fuel Type	Gasoline
Configuration	6-cylinder, liquid-cooled
Displacement	291 ci 4.8 L
Bore/Stroke	3.75x4.39 inches 95 x 112 mm
Rated RPM	2300
Oil capacity	9 qts 8.5 L
Coolant capacity	20.5 qts 19.4 L

Transmission

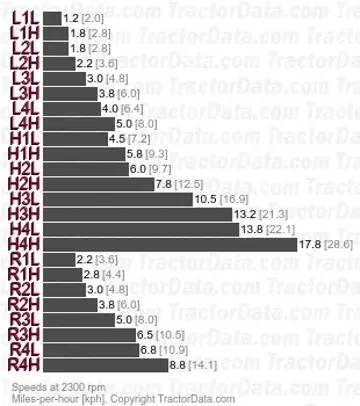

Transmission — Torque Amplifier

Transmission	Torque Amplifier
Type	two-speed power shift
Gears	16 forward and 8 reverse
Four gears in two ranges, plus reverse range, with two-speed power shift.
With 18.4-30 rear tires.

Dimensions

International Harvester 756 Tires
Ag front	7.50-18
Ag rear	18.4-30

Dimensions
Wheelbase	101 inches 256 cm
Length	164 inches 416 cm
Height (steering wheel)	82 inches 208 cm
Shipping weight	8400 lbs 3810 kg

Photos

Open station International 756.

International 756 with cab and loader.

International 756 with cab and loader.
