Iseki SX95
The Iseki SX95 is a tractor produced by Iseki. It is equipped with a 329.1 ci 5.4 L engine. The rated power output is 95 hp 70.8 kW. Transmission: Super Shift. Operating weight: 7937 to 9039 pounds.
Engine Power
95 hp
70.8 kW
Fuel & Capacities
30.4 gal
115.1 L
Transmission
Super Shift
Operating Weight
7937 to 9039 pounds
Iseki SX95 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1985 - 1990
SX SeriesUtility tractor |
|---|---|
1985 - 1990 | |
SX Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Iseki |
Utility tractor | |
Built in Japan | |
Iseki SX95 Engine | |
|---|---|
Isuzu 5.4L 6-cyl diesel | |
ROPS Fuel tank | 30.4 gal
115.1 L |
Cab Fuel tank | 35.7 gal
135.1 L |
Engine details ...  | |
Iseki SX95 Power | |
|---|---|
Engine | 95 hp
70.8 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Wet disc brakes | |
Four-post ROPS. Cab optional with air-conditioning. |
Hydraulics | |
|---|---|
Pump flow | 13.2 gpm
50.0 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift | 6834 lbs
3099 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | hydraulic wet disc |
Rear PTO Type | 540/1000 (1.375) |
Engine RPM | 540@1789 |
1000@2000 | |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 98.6 inches
250 cm |
4WD Wheelbase | 99.4 inches
252 cm |
Weight | 7937 to 9039 pounds |
Front tire | 10.00-16 |
2WD Rear tire | 18.4-34 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Battery AH | 170 |
References | |
|---|---|
 | |
SX95 2WD & 4WD Tractors published in 1989, by Iseki |
Engine
Engine Detail — 329.1 ci / 5.4 L Diesel
Manufacturer | Isuzu 6BB1 |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 329.1 ci
5.4 L |
Bore/Stroke | 4.016x4.331 inches
102 x 110 mm |
Power | 95 hp
70.8 kW |
Fuel system | direct injection |
Air cleaner | dual dry element |
Pre-heating | glow plugs |
Rated RPM | 2200 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission options | |
|---|---|
12-speed syncromesh | |
24-speed |

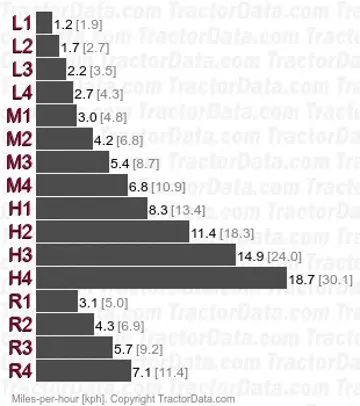

Transmission — 12 forward and 4 reverse syncromesh
Type | syncromesh |
Gears | 12 forward and 4 reverse |
Clutch | 330.2mm dry disc |
 | |
Transmission — Super Shift
Transmission | Super Shift |
Gears | 24 forward and 8 reverse |
Dimensions
Iseki SX95 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 10.00-16. Rear: 18.4-34 |
4WD Standard tires (ag) | Front: 12.4-24. Rear: 18.4-34 |
Dimensions | |
|---|---|
2WD Wheelbase | 98.6 inches
250 cm |
4WD Wheelbase | 99.4 inches
252 cm |
Length | 167.9 inches
426 cm |
Height (exhaust) | 105.1 inches
266 cm |
Ground clearance | 16.7 inches
42 cm |
2WD Front tread | 55.9 to 75.6 inches
141 to 192 cm |
4WD Front tread | 57.5 to 78 inches
146 to 198 cm |
Rear tread | 55.5 to 85.8 inches
140 to 217 cm |
Iseki SX95 Weight | |
|---|---|
2WD ROPS | 7937 lbs
3600 kg |
2WD Cab | 8598 lbs
3900 kg |
4WD ROPS | 8532 lbs
3870 kg |
4WD Cab | 9039 lbs
4100 kg |
