Iseki TF15F
The Iseki TF15F is a tractor produced by Iseki. It is equipped with a 54.9 ci 0.9 L engine. The rated power output is 15.3 hp 11.4 kW. Transmission: 6 forward and 2 reverse. Operating weight: 1477 lbs 669 kg.
Overview
 | 1995 - ????
Sial SeriesCompact Utility tractor |
|---|---|
1995 - ???? | |
Sial Series | |
Compact Utility tractor | |
1995 - ???? | |
|---|---|
Sial Series | |
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | Iseki |
Compact Utility tractor | |
Variants | |
|---|---|
TF15F-U | utility |
TF15HF | high-crop |
TF15NF | narrow |
Iseki TF15F Engine | |
|---|---|
Iseki 0.9L 3-cyl diesel | |
Fuel tank | 5.3 gal
20.1 L |
Engine details ...  | |
Iseki TF15F Transmission | |
|---|---|
6-speed | |
Transmission details ...  |
Iseki TF15F Power | |
|---|---|
Engine | 15.3 hp
11.4 kW |
PTO (claimed) | 13.8 hp
10.3 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Two-post ROPS with canopy. Cab optional. Two-post folding ROPS on TF15NF. |
Photos | |
|---|---|
 | |
Iseki TF15F photos...  |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 524@2500 |
730@2500 | |
1187@2500 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 51 inches
129 cm |
Weight | 1477 lbs
669 kg |
Front tire | 5.00-12 |
Rear tire | 8-18 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Battery AH | 45 |
Engine
| 1995 - ????
Sial SeriesCompact Utility tractor |
|---|---|
1995 - ???? | |
Sial Series | |
Compact Utility tractor | |
1995 - ???? | |
|---|---|
Sial Series | |
Compact Utility tractor |
Engine Detail | |
|---|---|
Iseki E390 | |
diesel | |
3-cylinder | |
liquid-cooled | |
Displacement | 54.9 ci
0.9 L |
Power | 15.3 hp
11.4 kW |
Rated RPM | 2500 |
Starter | electric |
Starter volts | 12 |

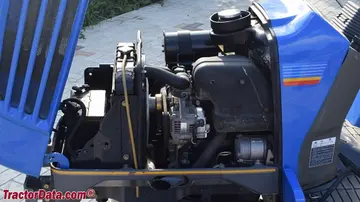

Iseki TF15F Engine | |
|---|---|
 | |
Image courtesy of Agro-Engineering |
Transmission
| 1995 - ????
Sial SeriesCompact Utility tractor |
|---|---|
1995 - ???? | |
Sial Series | |
Compact Utility tractor | |
1995 - ???? | |
|---|---|
Sial Series | |
Compact Utility tractor |
Transmission | |
|---|---|
Gears | 6 forward and 2 reverse |
Dimensions
| 1995 - ????
Sial SeriesCompact Utility tractor |
|---|---|
1995 - ???? | |
Sial Series | |
Compact Utility tractor | |
1995 - ???? | |
|---|---|
Sial Series | |
Compact Utility tractor |
Iseki TF15F Tires | |
|---|---|
Standard tires (ag) | Front: 5.00-12. Rear: 8-18 |
TF15HF Optional tires (ag) | Front: 6-12. Rear: 8.3-20 |
TF15NF Optional tires (ag) | Front: 5-12. Rear: 8-16 |
Dimensions | |
|---|---|
Wheelbase | 51 inches
129 cm |
Length | 98.4 inches
249 cm |
Width | 40.9 inches
103 cm |
Height | 73.4 inches
186 cm |
Weight | 1477 lbs
669 kg |
Ground clearance | 11.8 inches
29 cm |
Front tread | 32.7 inches
83 cm |
Rear tread | 31.5 to 37.4 inches
80 to 94 cm |
Photos

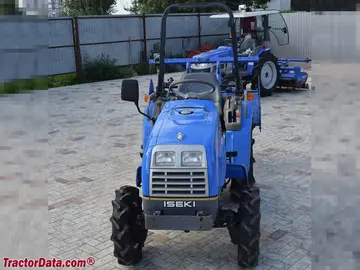

Iseki TF15F
Iseki TF15F
Iseki TF15F
Iseki TF15F
Iseki TF15F
Iseki TF15F
Iseki Sial 15 controls.
