Iseki TF317
The Iseki TF317 is a tractor produced by Iseki. It is equipped with a 61.4 ci 1.0 L engine. The listed engine power is Diesel (listed): 16.8 hp / 12.5 kW. Transmission: 9 forward and 3 reverse. Operating weight: 1543 to 1609 pounds.
Engine Power
Diesel (listed): 16.8 hp / 12.5 kW
Fuel & Capacities
4.8 gal
18.2 L
Transmission
9 forward and 3 reverse
Operating Weight
1543 to 1609 pounds
Overview
![]() | 2001 - ????
Compact Utility tractor |
|---|---|
2001 - ???? | |
Compact Utility tractor | |
2001 - ???? | |
|---|---|
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | Iseki |
Compact Utility tractor | |
Iseki TF317 Engine | |
|---|---|
Iseki 1.0L 3-cyl diesel | |
Fuel tank | 4.8 gal
18.2 L |
Engine details ... | |
Iseki TF317 Power | |
|---|---|
Engine | 16.8 hp
12.5 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | manual |
Differential mechanical wet disc brakes | |
Tractor hitch | |
|---|---|
Rear Type | I |
Rear lift (at ends) | 1,213 lbs
550 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live (two-stage clutch) |
independent on hydrostatic | |
Rear PTO Type | 540/1000 |
Mid PTO Type | 2000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 59.5 inches
151 cm |
Weight | 1543 to 1609 pounds |
Front tire | 5.00-12 |
Rear tire | 8-16 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Battery AH | 45 |
Engine
![]() | 2001 - ????
Compact Utility tractor |
|---|---|
2001 - ???? | |
Compact Utility tractor | |
2001 - ???? | |
|---|---|
Compact Utility tractor |
Engine Detail — 61.4 ci / 1.0 L Diesel
Manufacturer | Iseki E3100 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 61.4 ci
1.0 L |
Bore/Stroke | 2.91x3.07 inches
74 x 78 mm |
Power | 16.8 hp
12.5 kW |
Air cleaner | dry element |
Rated RPM | 2500 |
Starter type | electric |
Oil capacity | 3.3 qts
3.1 L |
Coolant capacity | 5.4 qts
5.1 L |
Transmission
![]() | 2001 - ????
Compact Utility tractor |
|---|---|
2001 - ???? | |
Compact Utility tractor | |
2001 - ???? | |
|---|---|
Compact Utility tractor |
Transmission options | |
|---|---|
6-speed unsynchronized | |
hydrostatic | |
9-speed unsynchronized |

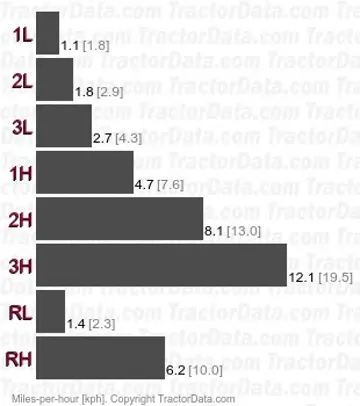

Transmission — 6 forward and 2 reverse unsynchronized
Type | unsynchronized |
Gears | 6 forward and 2 reverse |
Three forward and one reverse gear with high and low ranges. Tractor must be stopped and clutch used to shift gears or range. | |
![]() | |

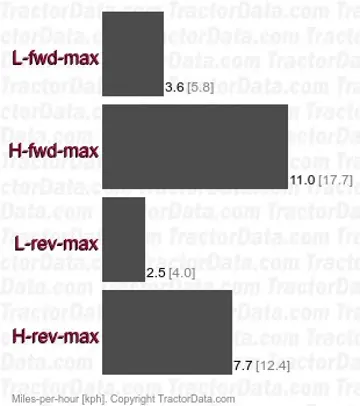

Transmission — infinite forward and reverse (2-range) hydrostatic
Type | hydrostatic |
Gears | infinite forward and reverse (2-range) |
![]() | |

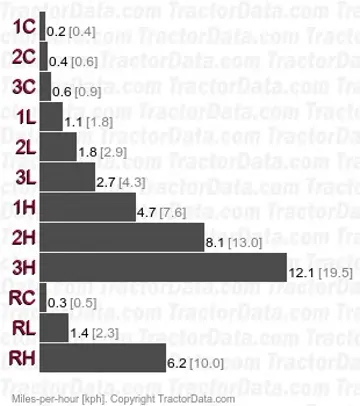

Transmission — 9 forward and 3 reverse unsynchronized
Type | unsynchronized |
Gears | 9 forward and 3 reverse |
Gear transmission with optional creeper range. | |
![]() | |
Dimensions
![]() | 2001 - ????
Compact Utility tractor |
|---|---|
2001 - ???? | |
Compact Utility tractor | |
2001 - ???? | |
|---|---|
Compact Utility tractor |
Iseki TF317 Tires | |
|---|---|
Ag front | 5.00-12 |
Ag rear | 8-16 |
Lawn/turf front | 24x8.50-12 |
Lawn/turf rear | 315/75D-15 |
Dimensions | |
|---|---|
Wheelbase | 59.5 inches
151 cm |
Length | 108.3 inches
275 cm |
Width | 44.3 inches
112 cm |
Height (steering wheel) | 51 inches
129 cm |
Height (ROPS) | 89.4 inches
227 cm |
Ground clearance | 6.3 inches
16 cm |
Iseki TF317 Weight | |
|---|---|
Shipping | 1,543 lbs (gear)
699 kg |
1,609 lbs (hydro)
729 kg | |
Max capacity | 3,582 lbs
1624 kg |
Max front axle | 1,653 lbs
749 kg |
Max rear axle | 1,929 lbs
874 kg |
Recommended Implements & Sizing Guide
Engineering recommendations for Iseki TF317 based on its 16.8 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki TF317.
Estimated Continuous Field Runtime: 5.5 hrs
Approximately 5.5 hours of continuous field operation at ~75% rated power on a full tank (4.8 gal / 18.2 L).
Estimated 75% Load Fuel Burn~0.9 gal/hr (3.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Iseki TF317 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TF317.
Converted Equivalents:
Horsepower (HP)16.8 hp
Kilowatts (kW)12.5 kW
Metric Horsepower (PS / CV)17 PS
