Iseki TU155

The Iseki TU155 is a tractor produced by Iseki. It is equipped with a 54.9 ci 0.9 L engine. The rated power output is 15.3 hp 11.4 kW. Transmission: 6 forward and 2 reverse. Operating weight: 1378 to 1466 pounds.

Overview

	1986 - 1990 Landhope TU5 SeriesCompact Utility tractor
1986 - 1990
Landhope TU5 Series
Compact Utility tractor

1986 - 1990
Landhope TU5 Series
Compact Utility tractor

Production
Manufacturer	Iseki
Compact Utility tractor

Variants
TU155F	4WD

Iseki TU155 Engine
Mitsubishi 0.9L 3-cyl diesel
Fuel tank	4 gal 15.1 L
Engine details ...

Iseki TU155 Transmission
6-speed gear
Transmission details ...

Iseki TU155 Power
Engine	15.3 hp 11.4 kW

Mechanical
Two- or four-wheel drive
Open operator station.

Photos
Iseki TU155 photos...

Tractor hitch
Rear Type	I

Power Take-off (PTO)
Rear PTO Type	540 (1.375)
Engine RPM	541@2500
	735@2500
	1138@2500

Dimensions & Tires
Wheelbase	49.6 inches 125 cm
Weight	1378 to 1466 pounds
Front tire	4.00-12
2WD Rear tire	8-18
Full dimensions and tires ...

References
Landhope 145 155 165 175 published by Iseki
Landhope 145 155 165 175 (1575-913-001-3D)

Engine

	1986 - 1990 Landhope TU5 SeriesCompact Utility tractor
1986 - 1990
Landhope TU5 Series
Compact Utility tractor

1986 - 1990
Landhope TU5 Series
Compact Utility tractor

Engine Detail
Mitsubishi K3C
diesel
3-cylinder
liquid-cooled
Displacement	54.9 ci 0.9 L
Bore/Stroke	2.76x3.07 inches 70 x 78 mm
Power	15.3 hp 11.4 kW
Rated RPM	2500
Starter	electric
Starter volts	1

Transmission

	1986 - 1990 Landhope TU5 SeriesCompact Utility tractor
1986 - 1990
Landhope TU5 Series
Compact Utility tractor

1986 - 1990
Landhope TU5 Series
Compact Utility tractor

Transmission
Type	gear
Gears	6 forward and 2 reverse

Speeds

Dimensions

	1986 - 1990 Landhope TU5 SeriesCompact Utility tractor
1986 - 1990
Landhope TU5 Series
Compact Utility tractor

1986 - 1990
Landhope TU5 Series
Compact Utility tractor

Iseki TU155 Tires
2WD Standard tires (ag)	Front: 4.00-12. Rear: 8-18
4WD Standard tires (ag)	Front: 5.00-12. Rear: 8-18

Dimensions
Wheelbase	49.6 inches 125 cm
Length	86.6 inches 219 cm
Width	40.9 inches 103 cm
Height	52 inches 132 cm
2WD Ground clearance	11 inches 27 cm
4WD Ground clearance	9.8 inches 24 cm
2WD Front tread	29.9 to 31.5 inches 75 to 80 cm
4WD Front tread	32.7 inches 83 cm
Rear tread	31.5 to 35.8 inches 80 to 90 cm

Iseki TU155 Weight
2WD	1378 lbs 625 kg
4WD	1466 lbs 664 kg
Max capacity	3300 lbs 1496 kg

Photos

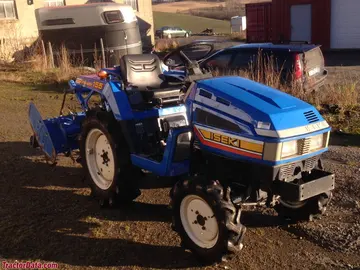

Iseki TU155

Iseki TU155

Iseki TU155

Iseki TU155

Iseki TU155
