Iseki TU170
The Iseki TU170 is a tractor produced by Iseki. It is equipped with a 59.7 ci 1.0 L engine. The listed engine power is Diesel (listed): 16.8 hp / 12.5 kW. Transmission: 6 forward and 2 reverse. Operating weight: 1532 to 1631 pounds.
Engine Power
Diesel (listed): 16.8 hp / 12.5 kW
Fuel & Capacities
4 gal
15.1 L
Transmission
6 forward and 2 reverse
Operating Weight
1532 to 1631 pounds
Overview
 | 1984 - 1986
Landhope TU SeriesCompact Utility tractor
Landhope TU Series
Compact Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Iseki |
Compact Utility tractor | |
Variants | |
|---|---|
TU170F | 4WD |
Iseki TU170 Engine | |
|---|---|
Mitsubishi 1.0L 3-cyl diesel | |
Fuel tank | 4 gal
15.1 L |
Engine details ...  | |
Iseki TU170 Transmission | |
|---|---|
6-speed gear | |
Transmission details ...  |
Iseki TU170 Power | |
|---|---|
Engine | 16.8 hp
12.5 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 514@2500 |
698@2500 | |
1128@2500 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 53.2 inches
135 cm |
Weight | 1532 to 1631 pounds |
Front tire | 4.00-12 |
2WD Rear tire | 8.3-22 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |

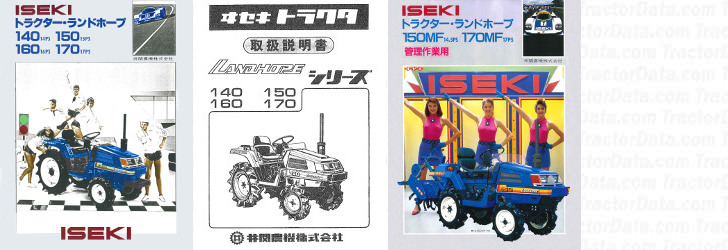

References | |
|---|---|
 | |
140 150 160 170 published in 1986, by Iseki | |
Landhope 140 150 160 170 (1544-913-001-0C) | |
150MF/170MF published in 1986, by Iseki |
Engine
Engine Detail — 59.7 ci / 1.0 L Diesel
Manufacturer | Mitsubishi K3D |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 59.7 ci
1.0 L |
Bore/Stroke | 2.875x3.071 inches
73 x 78 mm |
Power | 16.8 hp
12.5 kW |
Rated RPM | 2500 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 2.9 qts
2.7 L |
Coolant capacity | 5.8 qts
5.5 L |
Transmission
Transmission — 6 forward and 2 reverse gear
Type | gear |
Gears | 6 forward and 2 reverse |
Oil capacity | 15.9 qts
15.0 L |
Three gears, plus reverse, in two ranges. | |
 | |
Dimensions
Iseki TU170 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 4.00-12. Rear: 8.3-22 |
4WD Standard tires (ag) | Front: 6-12. Rear: 8.3-22 |
Dimensions | |
|---|---|
Wheelbase | 53.2 inches
135 cm |
Length | 97.2 inches
246 cm |
Width | 42.9 inches
108 cm |
2WD Height | 67.3 inches
170 cm |
4WD Height | 67.7 inches
171 cm |
2WD Weight | 1532 lbs
694 kg |
4WD Weight | 1631 lbs
739 kg |
2WD Ground clearance | 11 inches
27 cm |
4WD Ground clearance | 10.2 inches
25 cm |
2WD Front tread | 29.9/31.5 inches
75/80 cm |
4WD Front tread | 33.1 inches
84 cm |
Rear tread | 33.5/39.8 inches
85/101 cm |
Photos
Iseki TU170 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Iseki TU170 based on its 16.8 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki TU170.
Estimated Continuous Field Runtime: 4.6 hrs
Approximately 4.6 hours of continuous field operation at ~75% rated power on a full tank (4 gal / 15.1 L).
Estimated 75% Load Fuel Burn~0.9 gal/hr (3.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Iseki TU170 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TU170.
Converted Equivalents:
Horsepower (HP)16.8 hp
Kilowatts (kW)12.5 kW
Metric Horsepower (PS / CV)17 PS
Direct Competitor Comparison
Compare Iseki TU170 against same-era industry alternatives in the same horsepower class.
Current Model
Iseki
Iseki TU170
Engine Power:Diesel (listed): 16.8 hp / 12.5 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 154 Lo-Boy
Engine Power:15.6
Production Years:1968 - 1974
