Iseki TU1701
The Iseki TU1701 is a tractor produced by Iseki. It is equipped with a 71.4 ci 1.2 L engine. The listed engine power is Diesel (listed): 16.8 hp / 12.5 kW. Transmission: 12 forward and 4 reverse. Operating weight: 1543 to 1576 pounds.
Engine Power
Diesel (listed): 16.8 hp / 12.5 kW
Fuel & Capacities
6.1 gal
23.1 L
Transmission
12 forward and 4 reverse
Operating Weight
1543 to 1576 pounds
Overview
 | 1984 - ????
TU-01 SeriesCompact Utility tractor |
|---|---|
1984 - ???? | |
TU-01 Series | |
Compact Utility tractor | |
1984 - ???? | |
|---|---|
TU-01 Series | |
Compact Utility tractor |
Production | |
|---|---|
Manufacturer | Iseki |
Compact Utility tractor | |
Variants | |
|---|---|
TU1701F | 4WD |
Iseki TU1701 Engine | |
|---|---|
Isuzu 1.2L 3-cyl diesel | |
Fuel tank | 6.1 gal
23.1 L |
Engine details ...  | |
Iseki TU1701 Transmission | |
|---|---|
12-speed | |
Transmission details ...  |
Iseki TU1701 Power | |
|---|---|
Engine | 16.8 hp
12.5 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive |
Tractor hitch | |
|---|---|
Rear Type | JIS0 |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 (1.375) |
Engine RPM | 528@2300 |
814@2300 | |
1288@2300 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 53.2 inches
135 cm |
Weight | 1543 to 1576 pounds |
Front tire | 4.00-12 |
2WD Rear tire | 8.3-22 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Gold Series published in 1984, by Iseki | |
TU 1701 1901 2101 |
Engine
| 1984 - ????
TU-01 SeriesCompact Utility tractor |
|---|---|
1984 - ???? | |
TU-01 Series | |
Compact Utility tractor | |
1984 - ???? | |
|---|---|
TU-01 Series | |
Compact Utility tractor |
Engine Detail — 71.4 ci / 1.2 L Diesel
Manufacturer | Isuzu 3AF1 |
Fuel Type | Diesel |
Configuration | 3-cylinder, liquid-cooled |
Displacement | 71.4 ci
1.2 L |
Bore/Stroke | 2.992x3.386 inches
76 x 86 mm |
Power | 16.8 hp
12.5 kW |
Rated RPM | 2300 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 23.3 qts
22.1 L |
Oil capacity | 3.2 qts
3.0 L |
Transmission
| 1984 - ????
TU-01 SeriesCompact Utility tractor |
|---|---|
1984 - ???? | |
TU-01 Series | |
Compact Utility tractor | |
1984 - ???? | |
|---|---|
TU-01 Series | |
Compact Utility tractor |

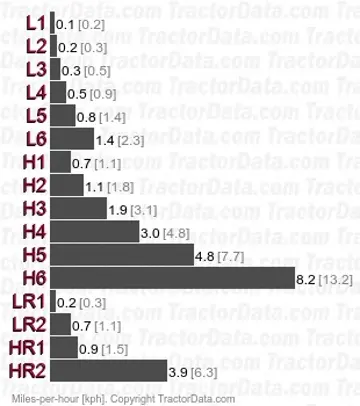

Transmission — 12 forward and 4 reverse
Gears | 12 forward and 4 reverse |
Oil capacity | 18 qts
17.0 L |
 | |
Dimensions
| 1984 - ????
TU-01 SeriesCompact Utility tractor |
|---|---|
1984 - ???? | |
TU-01 Series | |
Compact Utility tractor | |
1984 - ???? | |
|---|---|
TU-01 Series | |
Compact Utility tractor |
Iseki TU1701 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 4.00-12. Rear: 8.3-22 |
4WD Standard tires (ag) | Front: 6-12. Rear: 8.3-22 |
Dimensions | |
|---|---|
Wheelbase | 53.2 inches
135 cm |
Length | 102.8 inches
261 cm |
Width | 53.2 inches
135 cm |
Height (exhaust) | 76 inches
193 cm |
2WD Weight | 1543 lbs
699 kg |
4WD Weight | 1576 lbs
714 kg |
2WD Ground clearance | 12.2 inches
30 cm |
4WD Ground clearance | 11.4 inches
28 cm |
2WD Front tread | 33.5/37.8 inches
85/96 cm |
4WD Front tread | 37.4 inches
94 cm |
Rear tread | 34.7 to 40.9 inches
88 to 103 cm |
Photos
Iseki TU1701 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Iseki TU1701 based on its 16.8 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki TU1701.
Estimated Continuous Field Runtime: 7 hrs
Approximately 7 hours of continuous field operation at ~75% rated power on a full tank (6.1 gal / 23.1 L).
Estimated 75% Load Fuel Burn~0.9 gal/hr (3.3 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Iseki TU1701 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TU1701.
Converted Equivalents:
Horsepower (HP)16.8 hp
Kilowatts (kW)12.5 kW
Metric Horsepower (PS / CV)17 PS
Direct Competitor Comparison
Compare Iseki TU1701 against same-era industry alternatives in the same horsepower class.
Current Model
Iseki
Iseki TU1701
Engine Power:Diesel (listed): 16.8 hp / 12.5 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 154 Lo-Boy
Engine Power:15.6
Production Years:1968 - 1974
