Iseki TX2160

The Iseki TX2160 is a tractor produced by Iseki. It is equipped with a 51.8 ci 0.8 L engine. The listed engine power is Diesel (listed): 16 hp / 11.9 kW. Transmission: infinite forward and reverse. Operating weight: 1179 lbs (2WD) 534 kg.

Engine Power
Diesel (listed): 16 hp / 11.9 kW
Fuel & Capacities
3.2 gal 12.1 L
Transmission
infinite forward and reverse
Operating Weight
1179 lbs (2WD) 534 kg

Overview

Iseki TX2160 tractor photo
1985 - 1991 Compact Utility tractor
Production
Manufacturer
Iseki
Compact Utility tractor
Original price
GBP5795 (1988 gear )
GBP6495 (1988 hydro )
Variants
TX2160F
4WD
Iseki TX2160 Engine
Mitsubishi 0.8L 3-cyl diesel
Fuel tank
3.2 gal 12.1 L
Engine details ...
Iseki TX2160 Power
Engine
16 hp 11.9 kW
Mechanical
Two- or four-wheel drive
Steering
manual
Mechanical dry shoe brakes
Hydraulics
Pressure
1850 psi 127.6 bar
Total flow
2.7 gpm 10.2 lpm
Tractor hitch
Rear Type
0
Rear lift (at ends)
838 lbs 380 kg
Power Take-off (PTO)
Rear PTO Type
540/1000
Dimensions & Tires
Wheelbase
50.4 inches 128 cm
Weight
1179 to 1279 pounds
Front tire
20x8.00-10
Rear tire
29x12.00-15
Full dimensions and tires ...
Electrical
Charging system
alternator
Charging amps
35
Battery volts
12
Battery AH
45
References
TX2160 references literature
Technical Annual published in 1983, by Power Farming

Engine

Engine Detail — 51.8 ci / 0.8 L Diesel

Manufacturer
Mitsubishi K3B
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
51.8 ci 0.8 L
Bore/Stroke
2.677x3.071 inches 68 x 78 mm
Power
16 hp 11.9 kW
Rated RPM
2600
Starter type
electric
Oil capacity
3.2 qts 3.0 L
Intake valve clearance
0.014 inches 0.356 mm
Exhaust valve clearance
0.014 inches 0.356 mm

Transmission

Transmission options
6-speed gear
hydrostatic

Transmission — 6 forward and 2 reverse gear

Type
gear
Gears
6 forward and 2 reverse
Oil capacity
13 qts 12.3 L

Transmission — infinite forward and reverse hydrostatic

Type
hydrostatic
Gears
infinite forward and reverse
Oil capacity
16.9 qts 16.0 L
TX2160  hydrostatic speeds

Dimensions

Iseki TX2160 Tires
Ag front
20x8.00-10 (2WD)
5.00x12 (4WD)
Ag rear
29x12.00-15 (2WD)
8x18 (4WD)
Dimensions
Wheelbase
50.4 inches 128 cm
Length
80.3 inches 203 cm
Width
44.1 inches 112 cm
Weight
1179 lbs (2WD) 534 kg
1279 lbs (4WD) 580 kg
Ground clearance
9.8 inches (4WD) 24 cm

Photos

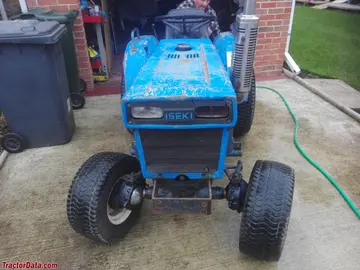

Iseki TX2160

Iseki TX2160

Recommended Implements & Sizing Guide

Engineering recommendations for Iseki TX2160 based on its 16 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
1 to 2 Bottom (12")1 - 2 铧 (30 cm)Light DutyIdeal for garden plots and light sandy soil.
Rotary Cutter / MowerMowing & Clearing
4 ft (48 in)1.2 mLight DutyPasture clipping and light brush under 1" diameter.
Rotary TillerSeedbed Prep
42 to 48 in105 - 120 cmLight DutyCovers compact tractor tire width.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Iseki TX2160.

Estimated Continuous Field Runtime: 3.8 hrs

Approximately 3.8 hours of continuous field operation at ~75% rated power on a full tank (3.2 gal / 12.1 L).

Estimated 75% Load Fuel Burn~0.8 gal/hr (3.1 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Iseki TX2160 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Iseki TX2160.

Converted Equivalents:

Horsepower (HP)16 hp
Kilowatts (kW)11.9 kW
Metric Horsepower (PS / CV)16.2 PS

Direct Competitor Comparison

Compare Iseki TX2160 against same-era industry alternatives in the same horsepower class.

Current Model
Iseki

Iseki TX2160

Engine Power:Diesel (listed): 16 hp / 11.9 kW
★ Baseline Reference
KubotaMarket Competitor

Kubota JB14

Engine Power:14.4
Production Years:2006 - 2008
DeereMarket Competitor

Deere LA

Engine Power:14.4
Production Years:1941 - 1946
FordMarket Competitor

Ford 1120

Engine Power:14.7
Production Years:1987 - 1993
New HollandMarket Competitor

New Holland 1120

Engine Power:14.7
Production Years:1987 - 1993
