j i case 1031
 | 1966 - 1969
1030 SeriesRow-Crop tractor | 1966 - 1969 | 1030 Series | Row-Crop tractor |
|---|---|---|---|---|
1966 - 1969 | ||||
1030 Series | ||||
Row-Crop tractor | ||||
1966 - 1969 | |
|---|---|
1030 Series | |
Row-Crop tractor |
Nebraska Tractor Test 952 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 952 | |
|---|---|
Diesel 8-speed 2WD
November 2 - 5, 1966
Link: Nebraska Tractor Test 952 file | |

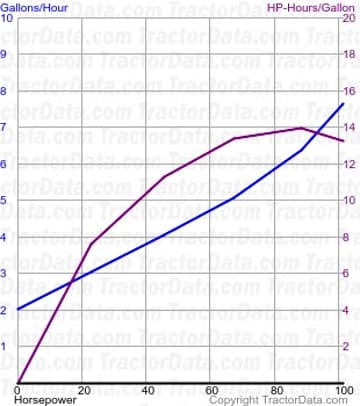

PTO performance | |
Power at rated engine speed | 101.79 hp
75.9 kW |
Fuel use | 7.7 gal/hour
29.1 l/hour |
Power at rated PTO speed | 93.15 hp
69.5 kW |
Fuel use | 6.8 gal/hour
25.7 l/hour |
Drawbar performance | |
Max power | 88.34 hp
65.9 kW |
Fuel use | 7.6 gal/hour
28.8 l/hour |
Gear 4 used for power test. | |
Max pull | 12,056 lbs
5468 kg |
Gear 2 used for pull test. | |
