J.I. Case 1190

The J.I. Case 1190 is a tractor produced by J I Case. It is equipped with a 164 ci 2.7 L engine. The listed engine power is 43.09 hp 32.1 kW. Transmission: 12 forward and 4 reverse. Operating weight: 4620 lbs 2095 kg.

Engine Power
43.09 hp 32.1 kW
Fuel & Capacities
16 gal 60.6 L
Transmission
12 forward and 4 reverse
Operating Weight
4620 lbs 2095 kg

Overview

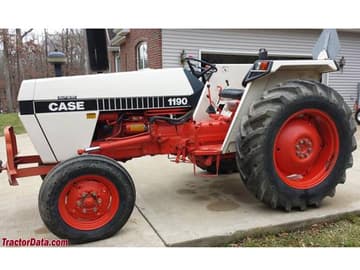

J.I. Case 1190 tractor photo
1980 - 1983 90 SeriesUtility tractor 90 Series Utility tractor
Production
Manufacturer
J.I. Case
Utility tractor
Built in Meltham Mills, Huddersfield, England
Original price was $17,200 in 1983
J.I. Case 1190 Engine
J.I. Case 2.7L 3-cyl diesel
Engine details ...
J.I. Case 1190 Transmission
12-speed synchromesh
Transmission details ...
J.I. Case 1190 Power
PTO (claimed)
43 hp 32.1 kW
Drawbar (tested)
34.65 hp 25.8 kW
PTO (tested)
43.09 hp 32.1 kW
Performance test details ...
Mechanical
Two-wheel drive
Power steering
Mechanical drum brakes
Two-post ROPS.
Capacity
Fuel
16 gal 60.6 L
Hydraulic system
7.2 gal 27.3 L
Hydraulics
Type
open center
Capacity
7.2 gal 27.3 L
Valves
1 or 2
Pump flow
7.25 gpm 27.4 lpm
Tractor hitch
Rear Type
I
Power Take-off (PTO)
Rear PTO
transmission
Rear PTO Type
540
Dimensions & Tires
Wheelbase
77 inches 195 cm
Weight
4620 lbs 2095 kg
Front tire
6.00x16
Rear tire
13.6x28
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
26
Battery volts
12
References

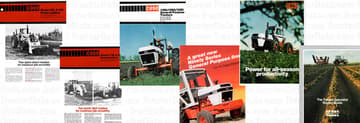

1190 references literature
Model 56L & 66L Farm Loaders published in 1980, by J.I. Case
Models 74L & 56L Farm Loaders published in 1983, by J.I. Case
1190/1290/1390 General Purpose Tractors published in 1981, by J.I. Case
A great new Ninety Series General Purpose line published in 1980, by J.I. Case
Power for all-season productivity published in 1982, by J.I. Case
The Tractor Specialist Buyers Guide published in 1983, by J.I. Case

Engine

Engine Detail — 164 ci / 2.7 L Diesel

Manufacturer
J.I. Case
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
164 ci 2.7 L
Bore/Stroke
3.94x4.50 inches 100 x 114 mm
Air cleaner
dual dry element
Compression
17:1
Rated RPM
2200
Starter volts
12
Oil capacity
6.6 qts 6.2 L
Coolant capacity
9 qts 8.5 L

Transmission

Transmission — 12 forward and 4 reverse synchromesh

Type
synchromesh
Gears
12 forward and 4 reverse
Clutch
dry disc
Oil capacity
28.8 qts 27.3 L
With 13.6x28 rear tires.
1190 synchromesh speeds

Dimensions

J.I. Case 1190 Tires
Ag front
6.00x16
Ag rear
13.6x28
Dimensions
Wheelbase
77 inches 195 cm
Length
121 inches 307 cm
Height (exhaust)
84 inches 213 cm
Shipping weight
4620 lbs 2095 kg
Max weight
7000 lbs 3175 kg
Clearance (front axle)
16 inches 40 cm

Tests

Nebraska Tractor Test 1378
Diesel 12-speed 2WD March 27 - April 9, 1981 Link: Nebraska Tractor Test 1378 file
PTO performance
Power at rated engine speed
43.09 hp 32.1 kW
Fuel use
2.9 gal/hour 11.0 l/hour
Power at rated PTO speed
38.54 hp 28.7 kW
Fuel use
2.6 gal/hour 9.8 l/hour
Drawbar performance
Max power
34.65 hp 25.8 kW
Fuel use
2.8 gal/hour 10.6 l/hour
Gear 4-1 used for power test.
Max pull
4620 lbs 2095 kg
Gear 1-3 used for pull test.

Recommended Implements & Sizing Guide

Engineering recommendations for J I Case J.I. Case 1190 based on its 43.09 HP power envelope and ASAE agricultural standards.

Implement & OperationRecommended SizeWorkload RatingEngineering Notes
Moldboard PlowPrimary Tillage
2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)Medium DutyStandard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing
6 ft (72 in)1.8 mMedium DutyMedium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep
66 to 72 in165 - 180 cmMedium DutyStandard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage
7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙Medium DutyField leveling and clod breaking behind plows.
Hay BalerHay & Forage
Small Square Baler (14x18")小方捆打捆机 (36x46 cm)Medium DutyClassic 2-string baler for horse and small livestock hay.
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for J I Case J.I. Case 1190.

Estimated Continuous Field Runtime: 7.1 hrs

Approximately 7.1 hours of continuous field operation at ~75% rated power on a full tank (16 gal / 60.6 L).

Estimated 75% Load Fuel Burn~2.2 gal/hr (8.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

J I Case J.I. Case 1190 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for J I Case J.I. Case 1190.

Converted Equivalents:

Horsepower (HP)43.1 hp
Kilowatts (kW)32.1 kW
Metric Horsepower (PS / CV)43.7 PS

Direct Competitor Comparison

Compare J.I. Case 1190 against same-era industry alternatives in the same horsepower class.

Current Model
J I Case

J.I. Case 1190

Engine Power:43.09 hp 32.1 kW
★ Baseline Reference
DeereMarket Competitor

Deere 1010C

Engine Power:38.9
Production Years:1960 - 1964
View Full Specs→
International HarvesterMarket Competitor

International Harvester 364

Engine Power:38.9
Production Years:1976 - 1977
View Full Specs→
Fox River Tractor CompanyMarket Competitor

Fox River Tractor Company 18-35

Engine Power:38.9
Production Years:1920 - 1920
View Full Specs→
Keck-GonnermanMarket Competitor

Keck-Gonnerman 18-35

Engine Power:38.9
Production Years:1928 - 1937
View Full Specs→
