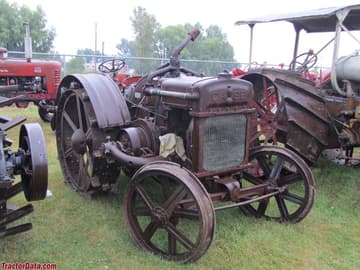

J.I. Case 18-32
The J.I. Case 18-32 is a tractor produced by J I Case. It is equipped with a 381.7 ci 6.3 L engine. Transmission: J.I. Case. Operating weight: 6,500 lbs 2948 kg.
Fuel & Capacities
Kerosene
Transmission
J.I. Case
Operating Weight
6,500 lbs
2948 kg
Overview
 | 1924 - 1927
Crossmotor SeriesStandard-tread tractor
Crossmotor Series
Standard-tread tractor |
|---|
Production | |
|---|---|
Manufacturer | J.I. Case |
Standard-tread tractor | |
Built in Racine, Wisconsin, USA | |
J.I. Case 18-32 Engine | |
|---|---|
J.I. Case 6.3L 4-cyl kerosene | |
Engine details ...  |
J.I. Case 18-32 Transmission | |
|---|---|
2-speed gear | |
Transmission details ...  |
J.I. Case 18-32 Power | |
|---|---|
Drawbar (claimed) | 18 hp
13.4 kW |
Belt (claimed) | 32 hp
23.9 kW |
Plows | 3 |
Drawbar (tested) | 24.52 hp
18.3 kW |
Belt (tested) | 36.73 hp
27.4 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station. | |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Weight | 6,500 lbs
2948 kg |
Rear tire | 52x14 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 16 inches
40 cm |
Width | 7.5 inches
19 cm |
RPM | 1000 |
Speed | 4,180 ft/min
1274.06 meters/min |
Engine
Engine Detail — 381.7 ci / 6.3 L Kerosene
Manufacturer | J.I. Case |
Fuel Type | Kerosene |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 381.7 ci
6.3 L |
Bore/Stroke | 4.50x6.00 inches
114 x 152 mm |
Rated RPM | 1000 |
Starter type | hand-crank |
Transmission
Transmission — J.I. Case
Transmission | J.I. Case |
Type | gear |
Gears | 2 forward and 1 reverse |
Dimensions
J.I. Case 18-32 Tires | |
|---|---|
Ag rear | 52x14 steel |
Dimensions | |
|---|---|
Length | 127 inches
322 cm |
Width | 72 inches
182 cm |
Height | 68 inches
172 cm |
Operating weight | 6,500 lbs
2948 kg |
Tests
Nebraska Tractor Test 109 | |
|---|---|
Kerosene 2-speed 2WD
October 27, 1924 - November 4, 1927
Link: Nebraska Tractor Test 109 file | |
Belt power (max) | 36.73 hp
27.4 kW |
Belt fuel use (max) | 4.0 gal/hour
15.1 l/hour |
Drawbar performance | |
Max power | 24.52 hp
18.3 kW |
Max pull | 3,882 lbs
1760 kg |
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for J I Case J.I. Case 18-32.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
J I Case J.I. Case 18-32 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for J I Case J.I. Case 18-32.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
