j i case 1270
 | 1972 - 1978
Row-Crop tractor | 1972 - 1978 | Row-Crop tractor |
|---|---|---|---|
1972 - 1978 | |||
Row-Crop tractor | |||
1972 - 1978 | |
|---|---|
Row-Crop tractor |
Tractor Tests | |
|---|---|
NTTL 1103: diesel 12-speed 2WD | |
NTTL 1160: diesel 12-speed 2WD |

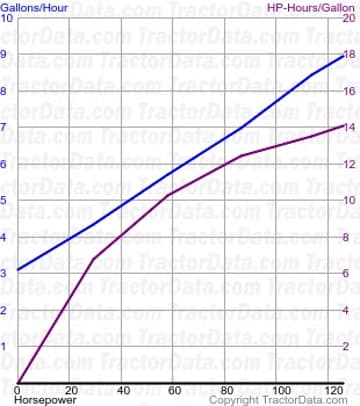

Nebraska Tractor Test 1103 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1103 | |
|---|---|
Diesel 12-speed 2WD
June 9 - 16, 1972
Link: Nebraska Tractor Test 1103 file | |
PTO performance | |
Power at rated engine speed | 126.70 hp
94.5 kW |
Fuel use | 8.9 gal/hour
33.7 l/hour |
Power at rated PTO speed | 126.60 hp
94.4 kW |
Fuel use | 8.7 gal/hour
32.9 l/hour |
Drawbar performance | |
Max power | 108.45 hp
80.9 kW |
Fuel use | 8.9 gal/hour
33.7 l/hour |
Gear 3-Lo used for power test. | |
Max pull | 12,690 lbs
5756 kg |
Gear 1-Hi used for pull test. | |

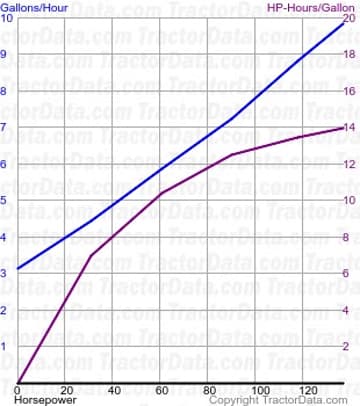

Nebraska Tractor Test 1160 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1160 | |
|---|---|
Diesel 12-speed 2WD
June 3 - 11, 1974
Link: Nebraska Tractor Test 1160 file | |
PTO performance | |
Power at rated engine speed | 135.39 hp
101.0 kW |
Fuel use | 9.8 gal/hour
37.1 l/hour |
Power at rated PTO speed | 135.41 hp
101.0 kW |
Fuel use | 9.5 gal/hour
36.0 l/hour |
Drawbar performance | |
Max power | 116.77 hp
87.1 kW |
Fuel use | 9.6 gal/hour
36.3 l/hour |
Gear 3-Lo used for power test. | |
Max pull | 15,648 lbs
7097 kg |
Gear 1-Int used for pull test. | |
