j i case 1470
 | 1969 - 1972
Four-wheel Drive (4WD) tractor | 1969 - 1972 | Four-wheel Drive (4WD) tractor |
|---|---|---|---|
1969 - 1972 | |||
Four-wheel Drive (4WD) tractor | |||
1969 - 1972 | |
|---|---|
Four-wheel Drive (4WD) tractor |
Nebraska Tractor Test 1006 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 1006 | |
|---|---|
Diesel 8-speed 4WD
April 15 - 23, 1969
Link: Nebraska Tractor Test 1006 file | |
PTO performance | |
Power at rated engine speed | 144.89 hp
108.0 kW |

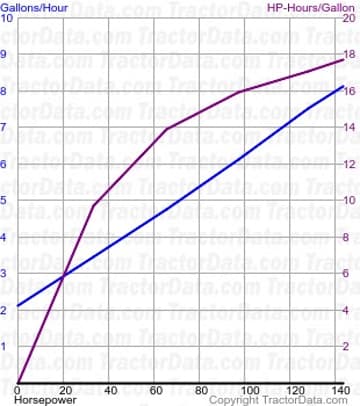

Fuel use | 8.2 gal/hour
31.0 l/hour |
Drawbar performance | |
Max power | 126.86 hp
94.6 kW |
Fuel use | 8.0 gal/hour
30.3 l/hour |
Gear 4 used for power test. | |
Max pull | 17,742 lbs
8047 kg |
Gear 1 used for pull test. | |
