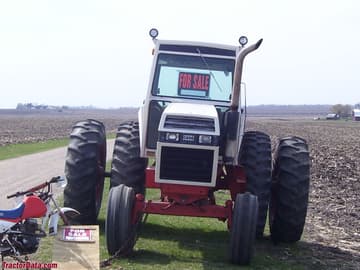

J.I. Case 2290

The J.I. Case 2290 is a tractor produced by J I Case. It is equipped with a 504 ci 8.3 L engine. The rated power output is 129.08 hp 96.3 kW. Transmission: 12 forward and 3 reverse. Operating weight: 10080 to 13700 pounds.

Overview

	1979 - 1983 90 SeriesRow-Crop tractor
1979 - 1983
90 Series
Row-Crop tractor

Production
Manufacturer	J.I. Case
Row-Crop tractor
Built in Racine, Wisconsin, USA
Original price	$44,400 (1983)

J.I. Case 2290 Engine
J.I. Case 8.3L 6-cyl diesel
Fuel tank	65 gal 246.0 L
Engine details ...

J.I. Case 2290 Power
Drawbar (claimed)	109 hp 81.3 kW
PTO (claimed)	129 hp 96.2 kW
Drawbar (tested)	109.21 hp 81.4 kW
PTO (tested)	129.08 hp 96.3 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Steering	hydrostatic power
Differential hydraulic wet disc brakes
Four-post ROPS. Silent Guardian cab with air-conditioning.

Hydraulics
Type	closed center
Valves	2
Pump flow	21 gpm 79.5 lpm

Tractor hitch
Rear Type	II

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000

Dimensions & Tires
Weight	10080 to 13700 pounds
Front tire	10.00-16
Rear tire	18.4-34
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Model90 Loaders published in 1979, by J.I. Case
2090/2290 Tractors published in 1979, by J.I. Case
2090 - 2290 published in 1981, by J.I. Case
Specialization... the payoff in farming published in 1980, by J.I. Case
The new look in farm power published in 1981, by J.I. Case
Power for all-season productivity published in 1982, by J.I. Case
The Tractor Specialist Buyers Guide published in 1983, by J.I. Case

Engine

Engine Detail — 504 ci / 8.3 L Diesel

Manufacturer	J.I. Case
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	504 ci 8.3 L
Bore/Stroke	4.625x5.00 inches 117 x 127 mm
Air cleaner	dual paper elements with aspirator
Compression	15.75:1
Rated RPM	2100
Starter volts	12
Coolant capacity	38 qts 36.0 L

Transmission

Transmission options
8-speed
12-speed partial power shift

Transmission — 8 forward and 4 reverse

Gears	8 forward and 4 reverse

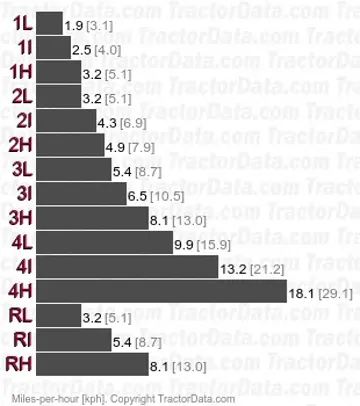

Transmission — 12 forward and 3 reverse partial power shift

Type	partial power shift
Gears	12 forward and 3 reverse

Dimensions

J.I. Case 2290 Tires
Ag front	10.00-16
Ag rear	18.4-34

Dimensions
Length	175.5 inches 445 cm
Height (cab)	115 inches 292 cm
Ground clearance	16 inches 40 cm
Rear axle	3.50 by 96 inches 88 by 2438 mm
Rear axle	3.50 by 120 inches 88 by 3048 mm

J.I. Case 2290 Weight
	10,080 lbs (ROPS) 4572 kg
	10,230 lbs (ROPS power shift) 4640 kg
	10,400 lbs (cab) 4717 kg
	10,550 lbs (cab power shift) 4785 kg
Operating	13,700 lbs (2WD cab and 18.4-38 duals) 6214 kg
Ballasted	15,840 lbs 7185 kg
520	three-point lbs 0 kg
260	hitch lbs 0 kg
90	front lbs 0 kg
120	long lbs 0 kg
1100	steel lbs 0 kg
1430	steel lbs 0 kg
1900	cast lbs 0 kg

Tests

Tractor Tests
NTTL 1296: diesel 8-speed 2WD
NTTL 1297: diesel 12-speed 2WD

Nebraska Tractor Test 1296
Diesel 8-speed 2WD November 7, 1978 - January 4, 1979 Link: Nebraska Tractor Test 1296 file
PTO performance
Power at rated engine speed	128.80 hp 96.0 kW
Fuel use	8.9 gal/hour 33.7 l/hour
Drawbar performance
Max power	106.07 hp 79.1 kW
Fuel use	8.5 gal/hour 32.2 l/hour
Gear 3L used for power test.
Max pull	12,635 lbs 5731 kg
Gear 1H used for pull test.

Nebraska Tractor Test 1297
Diesel 12-speed 2WD November , - January 4, 1979 Link: Nebraska Tractor Test 1297 file
PTO performance
Power at rated engine speed	129.08 hp 96.3 kW
Fuel use	8.9 gal/hour 33.7 l/hour
Drawbar performance
Max power	109.21 hp 81.4 kW
Fuel use	8.6 gal/hour 32.6 l/hour
Gear 3I used for power test.
Max pull	12,749 lbs 5782 kg
Gear 2L used for pull test.
