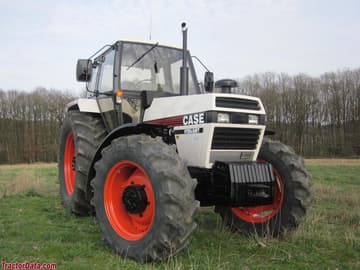

J.I. Case 1694
The J.I. Case 1694 is a tractor produced by J I Case. It is equipped with a 329 ci 5.4 L engine. The listed engine power is Diesel (listed): 112 hp / 83.5 kW. Transmission: Hydra-Shift. Operating weight: 9,580 lbs 4345 kg.
Engine Power
Diesel (listed): 112 hp / 83.5 kW
Fuel & Capacities
35.9 gal
135.9 L
Transmission
Hydra-Shift
Operating Weight
9,580 lbs
4345 kg
Overview
 | 1983 - 1984
94 SeriesUtility tractor
94 Series
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | J.I. Case |
Utility tractor | |
J.I. Case 1694 Engine | |
|---|---|
Case 5.4L 6-cyl diesel | |
Fuel tank | 35.9 gal
135.9 L |
Engine details ...  | |
J.I. Case 1694 Transmission | |
|---|---|
12-speed partial power shift | |
Transmission details ...  |
J.I. Case 1694 Power | |
|---|---|
Engine | 112 hp
83.5 kW |
PTO (claimed) | 99 hp
73.8 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Steering | hydrostatic power |
Disc brakes | |
Hydraulics | |
|---|---|
Pressure | 2600 psi
179.3 bar |
Rear valves | 1 to 3 |
Total flow | 10.5 gpm
39.7 lpm |
20.1 gpm (tandem)
76.1 lpm | |
Steering flow | 7.7 gpm
29.1 lpm |
Steering press. | 1850 psi
127.6 bar |
Tractor hitch | |
|---|---|
Rear Type | II |
Rear lift (at ends) | 7,440 lbs
3374 kg |
Rear lift (at 24"/610mm) | 6,290 lbs
2853 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 100 inches
254 cm |
Weight | 9,580 lbs
4345 kg |
Front tire | 13.6-28 |
Rear tire | 16.9-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 45 |
65 (heavy duty) | |
Battery CCA | 420 |
550 (heavy duty) | |
Battery volts | 12 |
Battery AH | 96 |
128 (heavy duty) | |
References | |
|---|---|
 | |
Models 74L & 56L Farm Loaders published in 1983, by J.I. Case | |
1594 - 1694 published in 1983, by J.I. Case | |
94 Series published in 1983, by J.I. Case |
Engine
Engine Detail — 329 ci / 5.4 L Diesel
Manufacturer | Case |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 329 ci
5.4 L |
Bore/Stroke | 3.937x4.500 inches
100 x 114 mm |
Power | 112 hp
83.5 kW |
Compression | 16:1 |
Rated RPM | 2300 |
Starter | electric |
Starter volts | 12 |
Oil capacity | 13.2 qts
12.5 L |
Coolant capacity | 16.2 qts
15.3 L |
Transmission
Transmission — Hydra-Shift
Transmission | Hydra-Shift |
Type | partial power shift |
Gears | 12 forward and 4 reverse |
Oil capacity | 33.6 qts
31.8 L |
Dimensions
J.I. Case 1694 Tires | |
|---|---|
Ag front | 13.6-28 |
13.6-24 | |
Ag rear | 16.9-38 |
Dimensions | |
|---|---|
Wheelbase | 100 inches
254 cm |
Width | 79 inches
200 cm |
Height (cab) | 108 inches
274 cm |
Ground clearance | 16.5 inches
41 cm |
Front tread | 60 to 76 inches
152 to 193 cm |
Rear tread | 56 to 84 inches
142 to 213 cm |
J.I. Case 1694 Weight | |
|---|---|
9,580 lbs
4345 kg | |
Max capacity | 13,500 lbs
6123 kg |
Max Drawbar | 3,300 lbs (PTO position)
1496 kg |
Max front axle | 8,000 lbs
3628 kg |
Max rear axle | 12,000 lbs
5443 kg |
Recommended Implements & Sizing Guide
Engineering recommendations for J I Case J.I. Case 1694 based on its 112 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm) | Heavy Duty | Heavy primary tillage; semi-mounted hitch recommended. |
Rotary Cutter / MowerMowing & Clearing | 10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼 | Heavy Duty | Wide swath pasture and crop residue shredding. |
Rotary TillerSeedbed Prep | 90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机 | Commercial / Field Scale | Deep intensive seedbed preparation for commercial row crops. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机 | Heavy Duty | High density baling; requires minimum 85 PTO HP. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for J I Case J.I. Case 1694.
Estimated Continuous Field Runtime: 6.2 hrs
Approximately 6.2 hours of continuous field operation at ~75% rated power on a full tank (35.9 gal / 135.9 L).
Estimated 75% Load Fuel Burn~5.8 gal/hr (22 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
J I Case J.I. Case 1694 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for J I Case J.I. Case 1694.
Converted Equivalents:
Horsepower (HP)112 hp
Kilowatts (kW)83.5 kW
Metric Horsepower (PS / CV)113.6 PS
