J.I. Case 2394

The J.I. Case 2394 is a tractor produced by J I Case. It is equipped with a 504 ci 8.3 L engine. The rated power output is 197 hp 146.9 kW. Transmission: 24 forward and 3 reverse. Operating weight: 14270 to 16240 pounds.

Overview

	1984 94 SeriesRow-Crop tractor
1984
94 Series
Row-Crop tractor

Production
Manufacturer	J.I. Case
Row-Crop tractor
Built in Racine, Wisconsin, USA

J.I. Case 2394 Engine
Case 8.3L 6-cyl diesel
Engine details ...

J.I. Case 2394 Power
Engine	197 hp 146.9 kW
Drawbar (claimed)	142 hp 105.9 kW
PTO (claimed)	160 hp 119.3 kW
Drawbar (tested)	137.78 hp 102.7 kW
PTO (tested)	162.15 hp 120.9 kW
Performance test details ...

Mechanical
Two-wheel drive
Power steering
Wet disc brakes
Silent Guardian cab with air-conditioning.

Capacity
Fuel	85 gal 321.7 L
	25 gal*Optional auxiliary tank 94.6 L
Hydraulic system	32 gal 121.1 L

Hydraulics
Type	closed center
Capacity	32 gal 121.1 L
Pressure	2250 psi 155.1 bar
Valves	2 to 4
Pump flow	27 gpm 102.2 lpm
Steering flow	8 gpm 30.3 lpm
Steering press.	2000 psi 137.9 bar

Tractor hitch
Rear Type	III
Rear lift (at 24"/610mm)	7,750 lbs 3515 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	hydraulic
Rear PTO Type	1000

Dimensions & Tires
Wheelbase	118 inches 299 cm
Weight	14270 to 16240 pounds
Front tire	11.00x16
Rear tire	18.4x38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	72
	105 OptOptional
Battery volts	12

References
2094/2294/2394/2594 Tractors published in 1983, by J.I. Case
Product Information - Case 94 Series Tractors published in 1983, by J.I. Case
The Tractor Specialist Buyers Guide published in 1984, by J.I. Case
Tractor & Loaders Buyers Guide published in 1985, by J.I. Case

Engine

Engine Detail — 504 ci / 8.3 L Diesel

Manufacturer	Case
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	504 ci 8.3 L
Bore/Stroke	4.625x5.00 inches 117 x 127 mm
Power	197 hp 146.9 kW
Rated RPM	2100
Starter volts	12
Oil capacity	30 qts 28.4 L
Coolant capacity	44 qts 41.6 L

Transmission

Transmission options
12-speed three-speed power shift
24-speed four-speed power shift

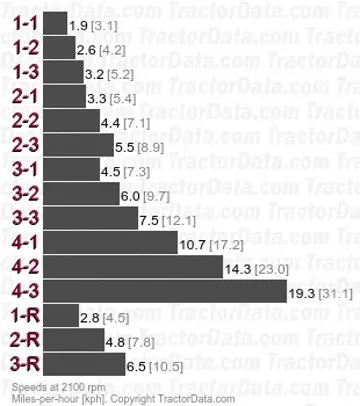

Transmission — 12 forward and 3 reverse three-speed power shift

Type	three-speed power shift
Gears	12 forward and 3 reverse
Oil capacity	128 qts 121.1 L
Three power-shift gears (1-3), plus reverse, in four ranges (1-4). Reverse does not function in fourth range.
With 18.4x38 rear tires.

Transmission — 24 forward and 3 reverse four-speed power shift

Type	four-speed power shift
Gears	24 forward and 3 reverse
Clutch	hydraulic wet disc
Oil capacity	128 qts 121.1 L
Six power shift gears (1-6), plus reverse, in four ranges (1-4). Reverse does not work in fourth range.
With 18.4x38 rear tires.

Dimensions

J.I. Case 2394 Tires
Ag front	11.00x16
Ag rear	18.4x38
Ag front	14Lx16
Ag rear	24.5x32
	30.5x32
	20.8x38
	18.4x42
	20.8x42

Dimensions
Wheelbase	118 inches 299 cm
Width	96 inches 243 cm
	120 inches*Optional long axle. 304 cm
Bar rear axle	3.875 by 96 inches 98 by 2438 mm
Bar rear axle	3.875 by 120 inches 98 by 3048 mm
Rear tread	60 to 110 inches 152 to 279 cm
Rear tread	60 to 132 inches 152 to 335 cm (long axle)

J.I. Case 2394 Weight
Shipping	14,270 lbs 6472 kg
Operating	16,240 lbs 7366 kg
Max capacity	20,500 lbs 9298 kg

Tests

Nebraska Tractor Test 1527
Diesel 24-speed 2WD June 7 - 23, 1984 Link: Nebraska Tractor Test 1527 file
PTO performance
Power at rated engine speed	162.15 hp 120.9 kW
Fuel use	10.5 gal/hour 39.7 l/hour
Drawbar performance
Max power	137.78 hp 102.7 kW
Fuel use	10.3 gal/hour 39.0 l/hour
Gear 3-4 used for power test.
Max pull	15497 lbs 7029 kg
Gear 2-2 used for pull test.
