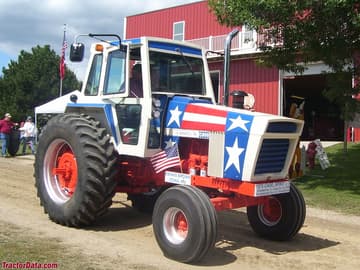

J.I. Case 1570

The J.I. Case 1570 is a tractor produced by J I Case. It is equipped with a 504 ci 8.3 L engine. The rated power output is 180.41 hp 134.5 kW. Transmission: 12 forward and 3 reverse. Operating weight: 13300 to 16000 pounds.

Overview

	1976 - 1978 Row-Crop tractor
1976 - 1978
Row-Crop tractor

Production
Manufacturer	J.I. Case
Row-Crop tractor
Built in Racine, Wisconsin, USA
Original price was $30,000 in 1978

J.I. Case 1570 Engine
J.I. Case 8.3L 6-cyl diesel
Fuel tank	80 gal 302.8 L
Engine details ...

J.I. Case 1570 Transmission
12-speed three-speed power shift
Transmission details ...

J.I. Case 1570 Power
PTO (claimed)	180 hp 134.2 kW
Drawbar (tested)	147.89 hp 110.3 kW
PTO (tested)	180.41 hp 134.5 kW
Performance test details ...

Mechanical
Two-wheel drive
Differential lock	hydraulic rear
Power steering
Hydraulic wet disc brakes
Cab standard with air-conditioning.

Hydraulics
Type	open center
Valves	2 to 4
Pump flow	20 gpm 75.7 lpm
	40 gpmOptOptional 151.4 lpm

Tractor hitch
Rear Type	III
Rear lift (at 24"/610mm)	7925 lbs 3594 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	1000
Engine RPM	1000@2100

Dimensions & Tires
Wheelbase	106 inches 269 cm
Weight	13300 to 16000 pounds
Front tire	11.00-16
Rear tire	18.4-38
Full dimensions and tires ...

References
Try the big one... New Case 1570 published in 1976, by J.I. Case
"Specializing" for Specialists published in 1978, by J.I. Case

Engine

Engine Detail — 504 ci / 8.3 L Diesel

Manufacturer	J.I. Case
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	504 ci 8.3 L
Bore/Stroke	4.625x5.00 inches 117 x 127 mm
Fuel system	direct injection
Air cleaner	dual stage dry
Compression	15.8:1
Rated RPM	2100
Starter volts	12
Coolant capacity	44 qts 41.6 L

Transmission

Transmission — 12 forward and 3 reverse three-speed power shift

Type	three-speed power shift
Gears	12 forward and 3 reverse
Clutch	hydraulic wet disc
Four gears, plus reverse, with three-range power shift.

Dimensions

J.I. Case 1570 Tires
Ag front	11.00-16
Ag rear	18.4-38
Ag rear	24.5-32
	30.5-32
	20.8-38

Dimensions
Wheelbase	106 inches 269 cm
Length	185 inches 469 cm
Height (cab)	114 inches 289 cm
Height (exhaust)	127 inches 322 cm
Front tread	60 to 88 inches 152 to 223 cm
Rear tread	68 to 95 inches 172 to 241 cm
Rear tread	68 to 119 inches 172 to 302 cm

J.I. Case 1570 Weight
Shipping	13300 lbs 6032 kg
Operating	16000 lbs 7257 kg
Ballasted	20350 lbs*Rear duals with fluid and iron weight plus front iron weights. 9230 kg

Tests

Nebraska Tractor Test 1218
Diesel 12-speed 2WD August 27 - September 3, 1976 Link: Nebraska Tractor Test 1218 file
PTO performance
Power at rated engine speed	180.41 hp 134.5 kW
Fuel use	12.0 gal/hour 45.4 l/hour
Drawbar performance
Max power	147.89 hp 110.3 kW
Fuel use	11.6 gal/hour 43.9 l/hour
Gear 3L used for power test.
Max pull	17115 lbs 7763 kg
Gear 2L used for pull test.
