j i case dc
 | 1939 - 1953
D SeriesRow-Crop tractor | 1939 - 1953 | D Series | Row-Crop tractor |
|---|---|---|---|---|
1939 - 1953 | ||||
D Series | ||||
Row-Crop tractor | ||||
1939 - 1953 | |
|---|---|
D Series | |
Row-Crop tractor |
Nebraska Tractor Test 340 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 340 | |
|---|---|
Gasoline 4-speed 2WD
April 18 - May 4, 1940
Link: Nebraska Tractor Test 340 file | |
Belt power (max) | 37.28 hp
27.8 kW |

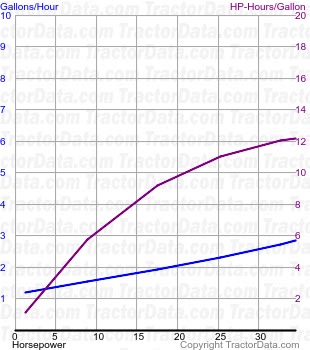

Belt fuel use (max) | 3.4 gal/hour
12.9 l/hour |
Drawbar performance | |
Max power | 33.06 hp
24.7 kW |
Gear 2 used for power test. | |
Max pull | 4,128 lbs
1872 kg |
Gear 1 used for pull test. | |
