Jacobsen 1450 53301

The Jacobsen 1450 53301 is a tractor produced by Jacobsen Lawn Tractors. It is equipped with a 512 cc 31.27 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: infinite forward and infintie (2-range) reverse (2-range). Operating weight: 820 lbs 371 kg.

Engine Power
Gasoline (gross): 14 hp / 10.4 kW
Fuel & Capacities
3 gal 11.4 L
Transmission
infinite forward and infintie (2-range) reverse (2-range)
Operating Weight
820 lbs 371 kg

Overview

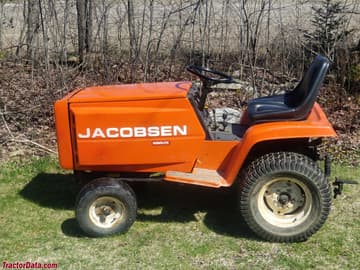

Jacobsen 1450 53301 tractor photo
1977 - 1980 1000 SeriesGarden tractor 1000 Series Garden tractor
Production
Manufacturer
Jacobsen (a part of Textron)
Garden tractor
Built in Racine, Wisconsin, USA
Original price was $3,200 in 1980
Jacobsen 1450 Engine
14HP Kohler 512cc 1-cyl gasoline
Fuel tank
3 gal 11.4 L
Engine details ...
Jacobsen 1450 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.
Tractor hitch
Rear Type
0 OptOptional
Type
sleeve hitch OptOptional
Power Take-off (PTO)
Rear PTO
independent OptOptional
Rear PTO Type
3300
Front PTO
independent
Clutch
electric
Dimensions & Tires
Wheelbase
46 inches 116 cm
Weight
820 lbs 371 kg
Front tire
16x6.50-8
Rear tire
23x10.50-12
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
1450 53301 references literature
What type of tractor is right for you? published in 1977, by Jacobsen
Tractors engineered to do more. published in 1978, by Jacobsen

Engine

Engine Detail — 512 cc / 31.27 ci Gasoline

Manufacturer
Kohler K321AQS
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled horizontal-shaft
Displacement
512 cc 31.27 ci
Bore/Stroke
3.50x3.25 inches 89 x 83 mm
Power (gross)
14 hp 10.4 kW
Air cleaner
dry
Rated RPM
3600
Starter
electric
Starter volts
12
Oil capacity
1.5 qts 1.4 L

Transmission

Transmission — infinite forward and infintie (2-range) reverse (2-range) shaft-driven hydrostatic

Type
shaft-driven hydrostatic
Gears
infinite forward and infintie (2-range) reverse (2-range)
1450 53301 shaft-driven hydrostatic speeds

Dimensions

Jacobsen 1450 Tires
Lawn/turf front
16x6.50-8
Lawn/turf rear
23x10.50-12
Dimensions
Wheelbase
46 inches 116 cm
Width
44 inches 111 cm
Height (steering wheel)
42 inches 106 cm
Height (hood)
37 inches 93 cm
Weight
820 lbs 371 kg
Clearance (front axle)
9.25 inches 23 cm
Clearance (rear axle)
8 inches 20 cm

Attachments

Attachment overview
42" mid-mount mower deck
50" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.

Photos

Jacobsen 1450 53301

Jacobsen 1450 53301

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Jacobsen Lawn Tractors Jacobsen 1450 53301.

Estimated Continuous Field Runtime: 4.1 hrs

Approximately 4.1 hours of continuous field operation at ~75% rated power on a full tank (3 gal / 11.4 L).

Estimated 75% Load Fuel Burn~0.7 gal/hr (2.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Jacobsen Lawn Tractors Jacobsen 1450 53301 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Jacobsen Lawn Tractors Jacobsen 1450 53301.

Converted Equivalents:

Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
