Jacobsen Chief 1200
 | 1966 - 1968
Garden tractor |
|---|---|
1966 - 1968 | |
Garden tractor | |
1966 - 1968 | |
|---|---|
Garden tractor |
Engine Detail | |
|---|---|
Kohler K301 | |
gasoline | |
1-cylinder | |
air-cooled horizontal-shaft | |
Displacement | 476 cc
29.07 ci |
Bore/Stroke | 3.375x3.25 inches
86 x 83 mm |
Power | 12 hp
8.9 kW |
Air cleaner | dry |
Rated RPM | 3600 |
Starter volts | 12 |
Oil capacity | 2.5 qts
2.4 L |

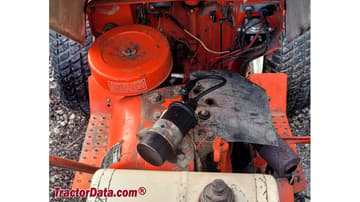

Jacobsen Chief 1200 Engine | |
|---|---|
 | |
Image courtesy of Thompson Speed Shop |
