Jacobsen Super Chief 1000 53082
The Jacobsen Super Chief 1000 53082 is a tractor produced by Jacobsen Lawn Tractors. It is equipped with a 390 cc 23.85 ci engine. The listed engine power is Gasoline (listed): 10 hp / 7.5 kW. Transmission: Hydro-Gear.
Engine Power
Gasoline (listed): 10 hp / 7.5 kW
Fuel & Capacities
1.25 gal
4.7 L
Transmission
Hydro-Gear
Overview
 | 1967 - 1968
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Jacobsen |
Garden tractor | |
Built in Racine, Wisconsin, USA | |
Variants | |
|---|---|
Chief 1000 | gear |
Super Chief 1000 | hydrostatic |
Jacobsen Super Chief 1000 Engine | |
|---|---|
10HP Kohler 390cc 1-cyl gasoline | |
Fuel tank | 1.25 gal
4.7 L |
Engine details ...  | |
Jacobsen Super Chief 1000 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Mechanical band brakes | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Wheelbase | 42 inches
106 cm |
Front tire | 16x6.50 |
Rear tire | 23x8.50 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
 | |
Chief Tractor Attachments published in 1967, by Jacobsen | |
Chief "Easy-On" Attachments published in 1968, by Jacobsen | |
Chief Tractors published in 1967, by Jacobsen |
Engine
Engine Detail — 390 cc / 23.85 ci Gasoline
Manufacturer | Kohler K241 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Displacement | 390 cc
23.85 ci |
Bore/Stroke | 3.25x2.875 inches
83 x 73 mm |
Power | 10 hp
7.5 kW |
Air cleaner | dry |
Rated RPM | 3600 |
Starter volts | 12 |
Oil capacity | 2.5 qts
2.4 L |
Transmission
Transmission — Hydro-Gear
Transmission | Hydro-Gear |
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
 | |
Dimensions
Jacobsen Super Chief 1000 Tires | |
|---|---|
Lawn/turf front | 16x6.50 |
Lawn/turf rear | 23x8.50 |
Dimensions | |
|---|---|
Wheelbase | 42 inches
106 cm |
Width | 33 inches
83 cm |
Height (steering wheel) | 39 inches
99 cm |
Height (hood) | 34.5 inches
87 cm |
Frame Ground clearance | 11.75 inches
29 cm |
Clearance (front axle) | 8.75 inches
22 cm |
Clearance (rear axle) | 6.25 inches
15 cm |
Front tread | 30 inches
76 cm |
Rear tread | 31.5 inches
80 cm |
Attachments
Attachment overview | |
|---|---|
36" mid-mount mower deck | |
42" mid-mount mower deck | |
48" mid-mount mower deck | |
Snowblower | |
Blade | |
Front-end loader | |
A belt-driven 32-inch tiller, model 59713, was available. |
Photos

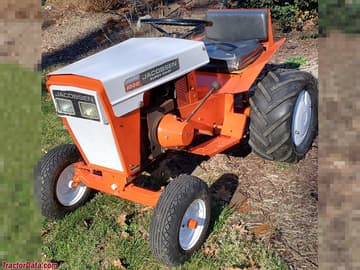

Jacobsen Super Chief 1000 53082
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Jacobsen Lawn Tractors Jacobsen Super Chief 1000 53082.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Jacobsen Lawn Tractors Jacobsen Super Chief 1000 53082 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Jacobsen Lawn Tractors Jacobsen Super Chief 1000 53082.
Converted Equivalents:
Horsepower (HP)10 hp
Kilowatts (kW)7.5 kW
Metric Horsepower (PS / CV)10.1 PS
