Jacobsen Super Chief 1450
The Jacobsen Super Chief 1450 is a tractor produced by Jacobsen Lawn Tractors. It is equipped with a 512 cc 31.27 ci engine. The listed engine power is Gasoline (listed): 14 hp / 10.4 kW. Transmission: Hydro-Gear.
Engine Power
Gasoline (listed): 14 hp / 10.4 kW
Fuel & Capacities
Gasoline
Transmission
Hydro-Gear
Overview
 | 1969 - 1971
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | Jacobsen |
Garden tractor | |
Jacobsen Super Chief 1450 Engine | |
|---|---|
14HP Kohler 512cc 1-cyl gasoline | |
Engine details ...  |
Jacobsen Super Chief 1450 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 512 cc / 31.27 ci Gasoline
Manufacturer | Kohler K321 |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled |
Displacement | 512 cc
31.27 ci |
Bore/Stroke | 3.25x3.50 inches
83 x 89 mm |
Power | 14 hp
10.4 kW |
Rated RPM | 3600 |
Starter volts | 12 |
Transmission
Transmission — Hydro-Gear
Transmission | Hydro-Gear |
Type | hydrostatic |
Gears | infinite forward and reverse |
Dimensions
Jacobsen Super Chief 1450 Tires |
|---|
Dimensions |
|---|
Photos

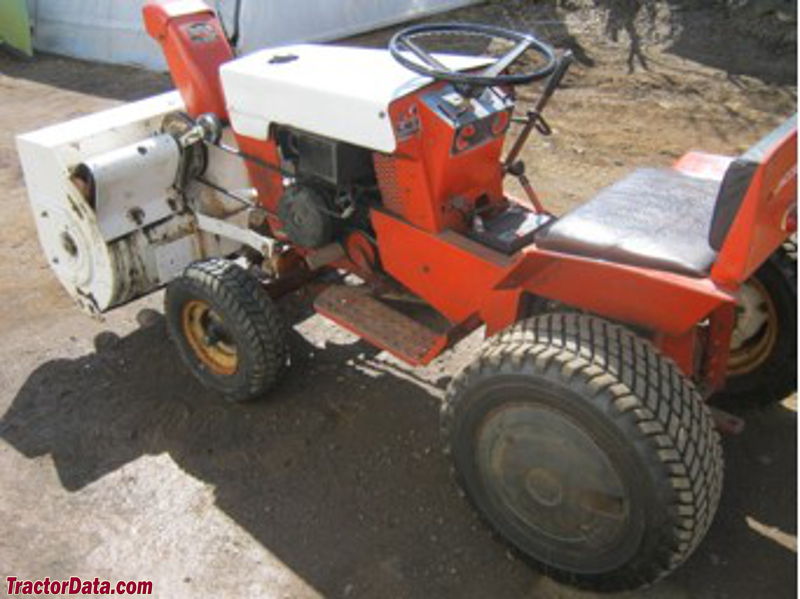

Jacobsen 1450 Super Chief with snowblower.
Jacobsen 1450 Super Chief with snowblower.

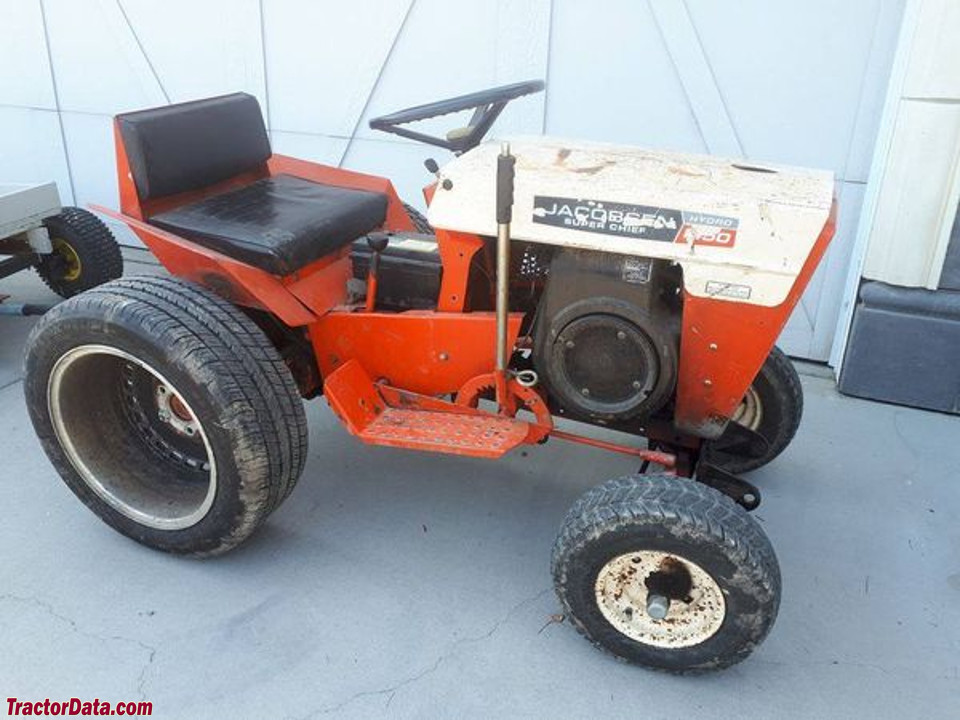

Jacobsen 1450 Super Chief tractor.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Jacobsen Lawn Tractors Jacobsen Super Chief 1450.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Jacobsen Lawn Tractors Jacobsen Super Chief 1450 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Jacobsen Lawn Tractors Jacobsen Super Chief 1450.
Converted Equivalents:
Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
