Jinma JM-180
The Jinma JM-180 is a tractor produced by Jinma. The rated power output is 18 hp 13.4 kW. Transmission: 6 forward and 2 reverse. Operating weight: 2139 lbs 970 kg.
Overview
 |
|---|
Production | |
|---|---|
Manufacturer | Jinma |
Built in Yancheng City, China | |
Jinma JM-180 Engine | |
|---|---|
Jinma 2-cyl diesel | |
Engine details ...  |
Jinma JM-180 Transmission | |
|---|---|
6-speed | |
Transmission details ...  |
Jinma JM-180 Power | |
|---|---|
Engine | 18 hp
13.4 kW |
Mechanical |
|---|
Photos | |
|---|---|
 | |
Jinma JM-180 photos...  |
Tractor hitch | |
|---|---|
Rear Type | 0 |
Rear lift | 742 lbs
336 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | live |
Rear PTO Type | 540, 1000 |
Dimensions & Tires | |
|---|---|
Wheelbase | 58.7 inches
149 cm |
Weight | 2139 lbs
970 kg |
Front tire | 4.00-16 |
Rear tire | 8.3-24 |
Full dimensions and tires ...  | |
Engine
|
|---|
Engine Detail | |
|---|---|
Jinma | |
diesel | |
2-cylinder | |
Power | 18 hp
13.4 kW |
Rated RPM | 2200 |
Transmission
|
|---|
Transmission | |
|---|---|
Gears | 6 forward and 2 reverse |
Dimensions
|
|---|
Jinma JM-180 Tires | |
|---|---|
Ag front | 4.00-16 |
Ag rear | 8.3-24 |
Dimensions | |
|---|---|
Wheelbase | 58.7 inches
149 cm |
Length | 100 inches
254 cm |
Width | 48.6 inches
123 cm |
Height | 50.7 inches
128 cm |
Weight | 2139 lbs
970 kg |
Photos

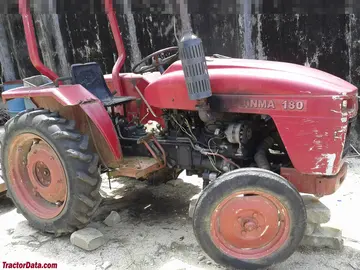

Jinma JM-180
