Jinma JM-254

The Jinma JM-254 is a tractor produced by Jinma. It is equipped with a 93.5 ci 1.5 L engine. The rated power output is 25 hp 18.6 kW. Transmission: 12 forward and 4 reverse. Operating weight: 2514 lbs 1140 kg.

Overview

	Compact Utility tractor	Compact Utility tractor
Compact Utility tractor

Compact Utility tractor

Production
Manufacturer	Jinma
Compact Utility tractor
Built in Yancheng City, China

Variants
JM-250	2WD
JM-254	4WD

Jinma JM-254 Engine
Yangdong 1.5L 3-cyl diesel
Engine details ...

Jinma JM-254 Transmission
12-speed
Transmission details ...

Jinma JM-254 Power
Engine	25 hp 18.6 kW

Mechanical
Four-wheel drive
Two-post ROPS.

Photos
Jinma JM-254 photos...

Capacity
Fuel	5.8 gal 22.0 L
Hydraulic system	2.38 gal 9.0 L

Hydraulics
Type	open center
Capacity	2.38 gal 9.0 L
Valves	1

Tractor hitch
Rear Type	I
Rear lift	875 lbs 396 kg

Power Take-off (PTO)
Rear PTO	live *2-stage clutch
Rear PTO Type	540/1000 (1.375)

Dimensions & Tires
Wheelbase	64.9 inches 164 cm
Weight	2514 lbs 1140 kg
Front tire	6.00-16
Rear tire	9.5-24
Full dimensions and tires ...

Engine

	Compact Utility tractor	Compact Utility tractor
Compact Utility tractor

Compact Utility tractor

Engine Detail
Yangdong Y385T
diesel
3-cylinder
liquid-cooled
Displacement	93.5 ci 1.5 L
Bore/Stroke	3.35x3.54 inches 85 x 90 mm
Power	25 hp 18.6 kW
Compression	22:1
Rated RPM	2350
Firing order	1-3-2
Starter volts	12
Oil capacity	6.3 qts 6.0 L
Coolant capacity	8.44 qts 8.0 L

Transmission

	Compact Utility tractor	Compact Utility tractor
Compact Utility tractor

Compact Utility tractor

Transmission
Gears	12 forward and 4 reverse

Dimensions

	Compact Utility tractor	Compact Utility tractor
Compact Utility tractor

Compact Utility tractor

Jinma JM-254 Tires
Ag front	6.00-16
Ag rear	9.5-24

Dimensions
Wheelbase	64.9 inches 164 cm
Length	117.8 inches 299 cm
Width	51.1 inches 129 cm
Height	56.6 inches 143 cm
Weight	2514 lbs 1140 kg

Photos

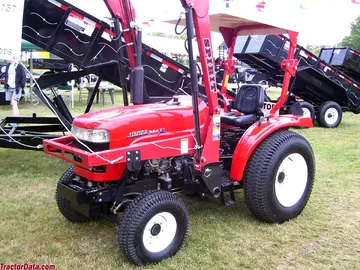

Jinma JM-254
