Jinma JM-354

The Jinma JM-354 is a tractor produced by Jinma. It is equipped with a 136.1 ci 2.2 L engine. The rated power output is 35 hp 26.1 kW. Transmission: 8 forward and 2 reverse. Operating weight: 3924 lbs 1779 kg.

Overview

	Compact Utility tractor	Compact Utility tractor
Compact Utility tractor

Compact Utility tractor

Production
Manufacturer	Jinma
Compact Utility tractor
Built in Yancheng City, China

Jinma JM-354 Engine
Jinma 2.2L 3-cyl diesel
Engine details ...

Jinma JM-354 Transmission
8-speed
Transmission details ...

Jinma JM-354 Power
Engine	35 hp 26.1 kW

Mechanical
Four-wheel drive
Open operator station.

Photos
Jinma JM-354 photos...

Capacity
Fuel	7.9 gal 29.9 L
Hydraulic system	2.3 gal 8.7 L

Hydraulics
Type	closed
Capacity	2.3 gal 8.7 L
Valves	1
Pump flow	5.3 gpm 20.1 lpm

Tractor hitch
Rear Type	I
Rear lift	1302 lbs 590 kg

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	540/720

Dimensions & Tires
Wheelbase	72.1 inches 183 cm
Weight	3924 lbs 1779 kg
Front tire	7.50-16
Full dimensions and tires ...

Engine

	Compact Utility tractor	Compact Utility tractor
Compact Utility tractor

Compact Utility tractor

Engine Detail
Jinma
diesel
3-cylinder
liquid-cooled
Displacement	136.1 ci 2.2 L
Bore/Stroke	3.74x4.134 inches 95 x 105 mm
Power	35 hp 26.1 kW
Compression	18:1
Rated RPM	2200
Starter volts	12
Oil capacity	6.3 qts 6.0 L
Coolant capacity	7.6 qts 7.2 L

Transmission

	Compact Utility tractor	Compact Utility tractor
Compact Utility tractor

Compact Utility tractor

Transmission
Gears	8 forward and 2 reverse

Dimensions

	Compact Utility tractor	Compact Utility tractor
Compact Utility tractor

Compact Utility tractor

Jinma JM-354 Tires
Ag front	7.50-16

Dimensions
Wheelbase	72.1 inches 183 cm
Length	123.81 inches 314 cm
Width	57.08 inches 144 cm
Height	79.92 inches 202 cm
Weight	3924 lbs 1779 kg

Photos

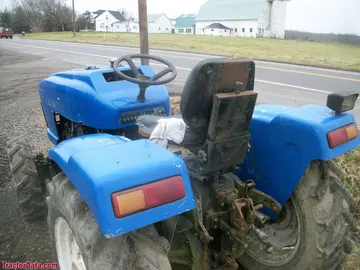

Jinma JM-354

Jinma JM-354
