Jinma JM-454

The Jinma JM-454 is a tractor produced by Jinma. It is equipped with a 185.4 ci 3.0 L engine. The rated power output is 45 hp 33.6 kW. Transmission: 8 forward and 4 reverse. Operating weight: 4665 lbs 2116 kg.

Overview

	Compact Utility tractor	Compact Utility tractor
Compact Utility tractor

Compact Utility tractor

Production
Manufacturer	Jinma
Compact Utility tractor
Built in Yancheng City, China

Jinma JM-454 Engine
Jinma 3.0L 3-cyl diesel
Engine details ...

Jinma JM-454 Transmission
8-speed
Transmission details ...

Jinma JM-454 Power
Engine	45 hp 33.6 kW

Mechanical
Four-wheel drive

Photos
Jinma JM-454 photos...

Tractor hitch
Rear Type	I
Rear lift	1686 lbs 764 kg

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	540/720/1000

Dimensions & Tires
Wheelbase	76.5 inches 194 cm
Weight	4665 lbs 2116 kg
Front tire	8.3-20
Rear tire	12.4-28
Full dimensions and tires ...

Engine

	Compact Utility tractor	Compact Utility tractor
Compact Utility tractor

Compact Utility tractor

Engine Detail
Jinma
diesel
3-cylinder
liquid-cooled
Displacement	185.4 ci 3.0 L
Bore/Stroke	4.134x4.606 inches 105 x 117 mm
Power	45 hp 33.6 kW
Rated RPM	2200

Transmission

	Compact Utility tractor	Compact Utility tractor
Compact Utility tractor

Compact Utility tractor

Transmission
Gears	8 forward and 4 reverse

Dimensions

	Compact Utility tractor	Compact Utility tractor
Compact Utility tractor

Compact Utility tractor

Jinma JM-454 Tires
Ag front	8.3-20
Ag rear	12.4-28

Dimensions
Wheelbase	76.5 inches 194 cm
Length	150.6 inches 382 cm
Width	64 inches 162 cm
Height	81.3 inches 206 cm
Weight	4665 lbs 2116 kg

Photos

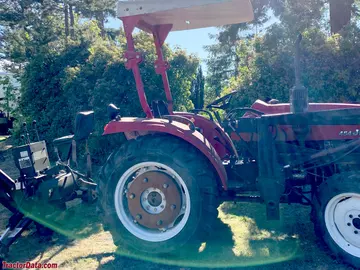

Jinma JM-454
