john deere 1010
 | 1960 - 1965
New Generation SeriesUtility tractor | 1960 - 1965 | New Generation Series | Utility tractor |
|---|---|---|---|---|
1960 - 1965 | ||||
New Generation Series | ||||
Utility tractor | ||||
1960 - 1965 | |
|---|---|
New Generation Series | |
Utility tractor |
Tractor Tests | |
|---|---|
NTTL 802: gasoline 5-speed 2WD | |
NTTL 803: diesel 5-speed 2WD |

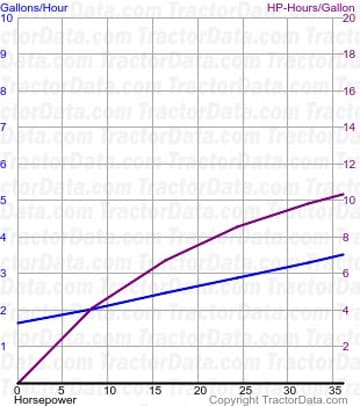

Nebraska Tractor Test 802 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 802 | |
|---|---|
Gasoline 5-speed 2WD
June 20 - 28, 1961
Link: Nebraska Tractor Test 802 file | |
PTO performance | |
Power at rated engine speed | 36.13 hp
26.9 kW |
Fuel use | 3.5 gal/hour
13.2 l/hour |
Power at rated PTO speed | 29.6 hp
22.1 kW |
Fuel use | 2.9 gal/hour
11.0 l/hour |
Drawbar performance | |
Max power | 30.00 hp
22.4 kW |
Fuel use | 3.5 gal/hour
13.2 l/hour |
Max pull | 3,615 lbs
1639 kg |
Gear 1 used for pull test. | |

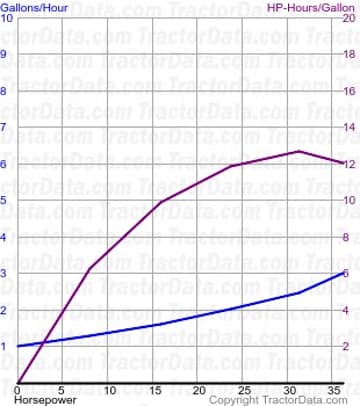

Nebraska Tractor Test 803 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 803 | |
|---|---|
Diesel 5-speed 2WD
June 21 - 29, 1961
Link: Nebraska Tractor Test 803 file | |
PTO performance | |
Power at rated engine speed | 35.99 hp
26.8 kW |
Fuel use | 3.0 gal/hour
11.4 l/hour |
Power at rated PTO speed | 29.70 hp
22.1 kW |
Fuel use | 2.4 gal/hour
9.1 l/hour |
Drawbar performance | |
Max power | 29.16 hp
21.7 kW |
Fuel use | 2.9 gal/hour
11.0 l/hour |
Max pull | 3,657 lbs
1658 kg |
Gear 1 used for pull test. | |
