john deere 1010c

John Deere 1010C tractor photo
1960 - 1964 Agricultural Crawler tractor
1960 - 1964
Agricultural Crawler tractor
1960 - 1964
Agricultural Crawler tractor
1960 - 1964
Agricultural Crawler tractor
Tractor Tests
NTTL 798: diesel 4-speed crawler
NTTL 801: gasoline 4-speed crawler
Nebraska Tractor Test 798

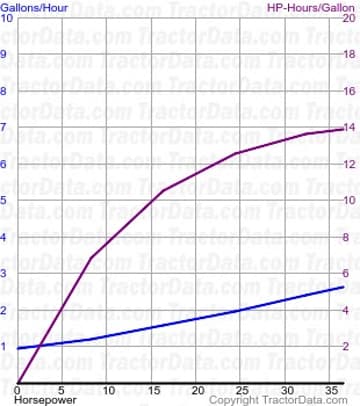

1010C fuel use from test 798
1010C fuel use from test 798
1010C fuel use from test 798
1010C fuel use from test 798
Nebraska Tractor Test 798
Diesel 4-speed crawler June 5 - 13, 1961 Link: Nebraska Tractor Test 798 file
PTO performance
Power at rated engine speed
36.31 hp 27.1 kW
Fuel use
2.6 gal/hour 9.8 l/hour
Power at rated PTO speed
24.82 hp 18.5 kW
Fuel use
1.7 gal/hour 6.4 l/hour
Drawbar performance
Max power
28.71 hp 21.4 kW
Fuel use
2.6 gal/hour 9.8 l/hour
Gear 3 used for power test.
Max pull
7,484 lbs 3394 kg
Gear 1 used for pull test.
Nebraska Tractor Test 801

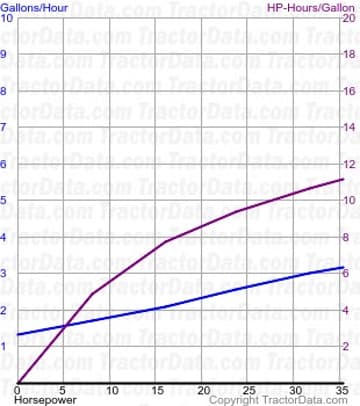

1010C fuel use from test 801
1010C fuel use from test 801
1010C fuel use from test 801
1010C fuel use from test 801
Nebraska Tractor Test 801
Gasoline 4-speed crawler June 13 - 19, 1961 Link: Nebraska Tractor Test 801 file
PTO performance
Power at rated engine speed
35.93 hp 26.8 kW
Fuel use
3.2 gal/hour 12.1 l/hour
Power at rated PTO speed
22.55 hp 16.8 kW
Fuel use
1.9 gal/hour 7.2 l/hour
Drawbar performance
Max power
27.38 hp 20.4 kW
Fuel use
3.2 gal/hour 12.1 l/hour
Gear 3 used for power test.
Max pull
7,179 lbs 3256 kg
Gear 1 used for pull test.
