john deere 1020
 | 1965 - 1973
New Generation SeriesUtility tractor | 1965 - 1973 | New Generation Series | Utility tractor |
|---|---|---|---|---|
1965 - 1973 | ||||
New Generation Series | ||||
Utility tractor | ||||
1965 - 1973 | |
|---|---|
New Generation Series | |
Utility tractor |
Tractor Tests | |
|---|---|
NTTL 935: gasoline 8-speed 2WD | |
NTTL 937: diesel 8-speed 2WD |

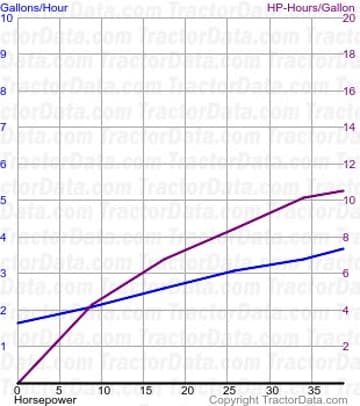

Nebraska Tractor Test 935 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 935 | |
|---|---|
Gasoline 8-speed 2WD
May 2 - 14, 1966
Link: Nebraska Tractor Test 935 file | |
PTO performance | |
Power at rated engine speed | 38.82 hp
28.9 kW |
Fuel use | 3.7 gal/hour
14.0 l/hour |
Power at rated PTO speed | 35.61 hp
26.6 kW |
Fuel use | 3.3 gal/hour
12.5 l/hour |
Drawbar performance | |
Max power | 31.64 hp
23.6 kW |
Fuel use | 3.5 gal/hour
13.2 l/hour |
Gear 5 used for power test. | |
Max pull | 4,246 lbs
1925 kg |
Gear 3 used for pull test. | |

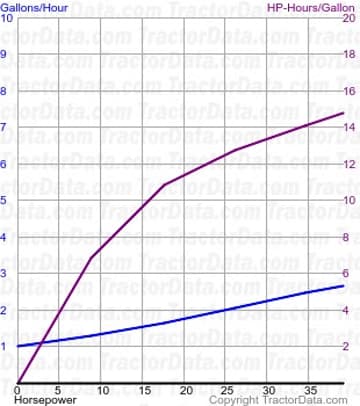

Nebraska Tractor Test 937 | ||
|---|---|---|
 | | |
| ||
|
|---|
Nebraska Tractor Test 937 | |
|---|---|
Diesel 8-speed 2WD
May 6 - 17, 1966
Link: Nebraska Tractor Test 937 file | |
PTO performance | |
Power at rated engine speed | 38.92 hp
29.0 kW |
Fuel use | 2.6 gal/hour
9.8 l/hour |
Power at rated PTO speed | 36.02 hp
26.9 kW |
Fuel use | 2.3 gal/hour
8.7 l/hour |
Drawbar performance | |
Max power | 31.81 hp
23.7 kW |
Fuel use | 2.6 gal/hour
9.8 l/hour |
Gear 5 used for power test. | |
Max pull | 4,200 lbs
1905 kg |
Gear 3 used for pull test. | |
