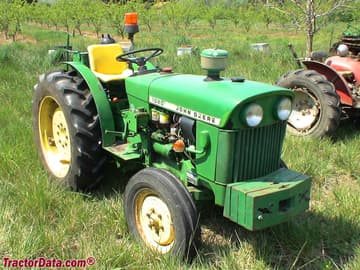

John Deere 1020 VU

The John Deere 1020 VU is a tractor produced by John Deere. It is equipped with a 152 ci 2.5 L engine. The listed engine power is Diesel (listed): 44 hp / 32.8 kW. Transmission: 8 forward and 4 reverse. Operating weight: 3770 lbs 1710 kg.

Engine Power

Diesel (listed): 44 hp / 32.8 kW

Fuel & Capacities

Diesel

Transmission

8 forward and 4 reverse

Operating Weight

3770 lbs 1710 kg

Overview

	1967 - 1972 Orchard/Vineyard tractor

Production
Manufacturer	John Deere
Orchard/Vineyard tractor

John Deere 1020 VU Engine
John Deere 2.5L 3-cyl diesel
Engine details ...

John Deere 1020 VU Transmission
8-speed gear
Transmission details ...

John Deere 1020 VU Power
Engine	44 hp 32.8 kW

Mechanical
Two-wheel drive
Differential lock	mechanical rear
Open operator station.

Tractor hitch
Rear Type	I

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
Engine RPM	540@2100

Dimensions & Tires
Wheelbase	63 inches 160 cm
Weight	3770 lbs 1710 kg
Front tire	5.50-16
Rear tire	11.2/10-28
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 152 ci / 2.5 L Diesel

Manufacturer	John Deere
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	152 ci 2.5 L
Bore/Stroke	3.86x4.33 inches 98 x 110 mm
Power	44 hp 32.8 kW
Air cleaner	oil bath
Rated RPM	2500
Starter	electric
Starter volts	12

Transmission

Transmission — 8 forward and 4 reverse gear

Type	gear
Gears	8 forward and 4 reverse
Four gears in two ranges, plus reverse range.

Dimensions

John Deere 1020 VU Tires
Ag front	5.50-16
Ag rear	11.2/10-28

Dimensions
Wheelbase	63 inches 160 cm
Length	122 inches 309 cm
Width	38.6 inches 98 cm
Weight	3770 lbs 1710 kg

Recommended Implements & Sizing Guide

Engineering recommendations for John Deere 1020 VU based on its 44 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	2 to 3 Bottom (14-16")2 - 3 铧 (35-40 cm)	Medium Duty	Standard utility farm tillage.
Rotary Cutter / MowerMowing & Clearing	6 ft (72 in)1.8 m	Medium Duty	Medium pasture clearing; rear slip-clutch recommended.
Rotary TillerSeedbed Prep	66 to 72 in165 - 180 cm	Medium Duty	Standard utility tiller; slip clutch protection required.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	Small Square Baler (14x18")小方捆打捆机 (36x46 cm)	Medium Duty	Classic 2-string baler for horse and small livestock hay.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere 1020 VU.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
