Massey Ferguson 1260

The Massey Ferguson 1260 is a tractor produced by Massey Ferguson. It is equipped with a 91.4 ci 1.5 L engine. The rated power output is 38 hp 28.3 kW. Transmission: 16 forward and reverse. Operating weight: 3,200 lbs 1451 kg.

Overview

	1992 - 2002 1200 Compact SeriesCompact Utility tractorIseki built
1992 - 2002
1200 Compact Series
Compact Utility tractor
Iseki built

1992 - 2002
1200 Compact Series
Compact Utility tractor
Iseki built

Production
Distributor	Massey Ferguson
Manufacturer	Iseki
Compact Utility tractor
Original price was $20,600 in 1999
The Massey Ferguson 1260 is similar to the Iseki model TK538.

Massey Ferguson 1260 Engine
Iseki 1.5L 3-cyl diesel
Engine details ...

Massey Ferguson 1260 Transmission
16-speed synchro shuttle
Transmission details ...

Massey Ferguson 1260 Power
Engine (gross)	40 hp 29.8 kW
Engine (net)	38 hp 28.3 kW
PTO (claimed)	31.7 hp 23.6 kW

Mechanical
Four-wheel drive
Steering	power assist
Wet disc brakes
Two-post foldable ROPS.

Capacity
Fuel	7.9 gal 29.9 L
Hydraulic system	6.6 gal 25.0 L

Hydraulics
Type	open center
Capacity	6.6 gal 25.0 L
Pump flow	6.3 gpm 23.8 lpm
Total flow	9.6 gpm 36.3 lpm

Tractor hitch
Rear Type	I
Control	position and draft control
Rear lift (at ends)	2866 lbs 1300 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540 (1.375)
Engine RPM	540@2430
Mid PTO	independent (optional)
Clutch	electro-hydraulic
Mid PTO Type	1925
Engine RPM	1925@2600

Dimensions & Tires
Wheelbase	67.9 inches 172 cm
Weight	3,200 lbs 1451 kg
Front tire	8.00-16
Rear tire	13.6-24
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	40
Battery CCA	622
Battery volts	12

References
MF Loaders for Compact & Agricultural Tractors published in 2003, by Massey Ferguson
MF 1200 Series Tractors published in 1993, by Massey Ferguson
MF 1200 Series published in 1997, by Massey Ferguson
MF 1260-4 compact tractor published by Massey Ferguson

Engine

	1992 - 2002 1200 Compact SeriesCompact Utility tractorIseki built
1992 - 2002
1200 Compact Series
Compact Utility tractor
Iseki built

1992 - 2002
1200 Compact Series
Compact Utility tractor
Iseki built

Engine Detail — 91.4 ci / 1.5 L Diesel

Manufacturer	Iseki E3AD1
Configuration	turbocharged diesel, 3-cylinder, liquid-cooled
Displacement	91.4 ci 1.5 L
Bore/Stroke	3.385x3.385 inches 86 x 86 mm
Power (net)	38 hp 28.3 kW
Power (gross)	40 hp 29.8 kW
Fuel system	indirect injection
Air cleaner	dry
Pre-heating	glow plugs
Compression	21.8:1
Rated RPM	2600
Torque	87 lb-ft 118.0 Nm
Torque RPM	1600
Starter volts	12
Coolant capacity	6.92 qts 6.5 L

Transmission

	1992 - 2002 1200 Compact SeriesCompact Utility tractorIseki built
1992 - 2002
1200 Compact Series
Compact Utility tractor
Iseki built

1992 - 2002
1200 Compact Series
Compact Utility tractor
Iseki built

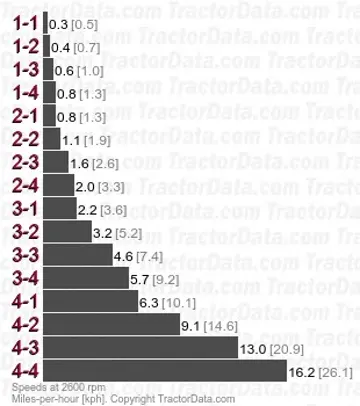

Transmission — 16 forward and reverse synchro shuttle

Type	synchro shuttle
Gears	16 forward and reverse
Clutch	240mm dry disc
Four gears in four ranges with shuttle.
With 13.6-24 rear tires. Reverse speeds are 5% slower than forward.

Dimensions

	1992 - 2002 1200 Compact SeriesCompact Utility tractorIseki built
1992 - 2002
1200 Compact Series
Compact Utility tractor
Iseki built

1992 - 2002
1200 Compact Series
Compact Utility tractor
Iseki built

Massey Ferguson 1260 Tires
Ag front	8.00-16
Ag rear	13.6-24

Dimensions
Wheelbase	67.9 inches 172 cm
Length	121.9 inches 309 cm
Width	56.1 inches*Minimum width 142 cm
Height	86.4 inches 219 cm
Height (Folded ROPS)	69.9 inches 177 cm
Weight	3,200 lbs 1451 kg
Ground clearance	13 inches 33 cm
Front tread	44.3 inches 112 cm
Rear tread	43.3 to 55.9 inches 109 to 141 cm

Attachments

	1992 - 2002 1200 Compact SeriesCompact Utility tractorIseki built
1992 - 2002
1200 Compact Series
Compact Utility tractor
Iseki built

1992 - 2002
1200 Compact Series
Compact Utility tractor
Iseki built

Attachment overview
72" mid-mount mower deck
Snowblower
Blade
Front-end loader
Backhoe

72" Mower deck
Type	mid-mount Massey Ferguson 1231
Cutting width	72 inches 182 cm

Massey Ferguson 1217 Backhoe
Backhoe type	Massey Ferguson 1217 Backhoe

Photos

Massey Ferguson 1260 compact utility tractor with 1246 front-end loader.
