john deere 1023e
 | 2011 - 2025
Model year 2011-20152016-2025
1 Sub-Compact SeriesSub-Compact Utility tractor | 2011 - 2025 | Model year 2011-20152016-2025 | 1 Sub-Compact Series | Sub-Compact Utility tractor |
|---|---|---|---|---|---|
2011 - 2025 | |||||
Model year 2011-20152016-2025 | |||||
1 Sub-Compact Series | |||||
Sub-Compact Utility tractor | |||||
2011 - 2025 | |
|---|---|
Model year 2011-20152016-2025 | |
1 Sub-Compact Series | |
Sub-Compact Utility tractor |
Engine Detail | |
|---|---|
Yanmar 3TNM72 | |
diesel | |
3-cylinder | |
liquid-cooled | |
Displacement | 55.1 ci
0.9 L |
Bore/Stroke | 2.8x2.9 inches
71 x 74 mm |
Emissions | Interim Tier IV |
Rated Power (gross) | 23.5 hp
17.5 kW |
Fuel system | indirect injection |
Air cleaner | dry dual stage |
Pre-heating | glow plugs |
Rated RPM | 3200 |
Operating RPM | 1400-3370 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 3.9 qts
3.7 L |
Coolant change | 2000 h |

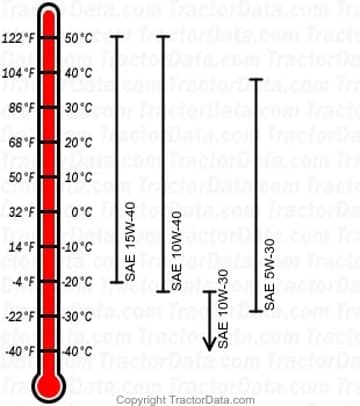

Engine Oil | |
|---|---|
 | |
Oil capacity | 2.9 qts
2.7 L |
Oil change | 200 h |

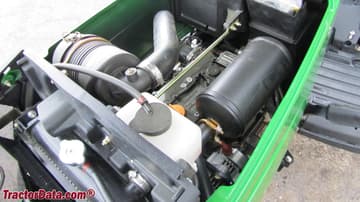

John Deere 1023E Engine | |
|---|---|
 |
