john deere 1025r
 | 2013 -
1 Sub-Compact SeriesSub-Compact Utility tractor | 2013 - | 1 Sub-Compact Series | Sub-Compact Utility tractor |
|---|---|---|---|---|
2013 - | ||||
1 Sub-Compact Series | ||||
Sub-Compact Utility tractor | ||||
2013 - | |
|---|---|
1 Sub-Compact Series | |
Sub-Compact Utility tractor |
Engine Detail | |
|---|---|
Yanmar 3TNV80 | |
diesel | |
3-cylinder | |
liquid-cooled | |
Displacement | 77.2 ci
1.3 L |
Bore/Stroke | 3.15x3.31 inches
80 x 84 mm |
Emissions | Tier 4 |
Power | 23.8 hp
17.7 kW |
Fuel system | indirect injection |
Air cleaner | dry |
Pre-heating | glow plugs |
| block heater OptOptional |
| coolant heater OptOptional |
Compression | 23.5:1 |
Rated RPM | 3200 |
Operating RPM | 1575-3370 |
Torque | 40.7 lb-ft
55.2 Nm |
Torque RPM | 3200 |
Starter | electric |
Starter volts | 12 |
Starter power | 1.6 hp
1.2 kW |
Coolant capacity | 3.9 qts
3.7 L |

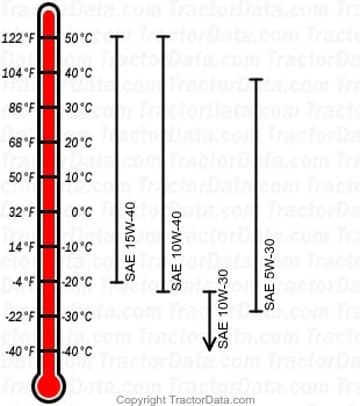

Engine Oil | |
|---|---|
 | |
Oil capacity | 2.9 qts
2.7 L |
Oil change | 200 h |

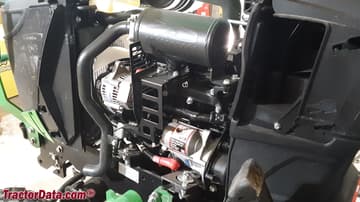

John Deere 1025R Engine | |
|---|---|
 |
