john deere 1026r
 | 2011 - 2012
1 Sub-Compact SeriesSub-Compact Utility tractor | 2011 - 2012 | 1 Sub-Compact Series | Sub-Compact Utility tractor |
|---|---|---|---|---|
2011 - 2012 | ||||
1 Sub-Compact Series | ||||
Sub-Compact Utility tractor | ||||
2011 - 2012 | |
|---|---|
1 Sub-Compact Series | |
Sub-Compact Utility tractor |
Engine Detail | |
|---|---|
Yanmar 3TNV76 | |
diesel | |
3-cylinder | |
liquid-cooled | |
Displacement | 68.1 ci
1.1 L |
Bore/Stroke | 2.9x3.2 inches
74 x 81 mm |
Rated Power (net) | 23.8 hp
17.7 kW |
Rated Power (gross) | 25.2 hp
18.8 kW |
Fuel system | indirect injection |
Air cleaner | dual stage dry |
Pre-heating | glow plugs |
Compression | 23.5:1 |
Rated RPM | 3200 |
Operating RPM | 1400-3370 |
Firing order | 1-3-2 |
Starter | electric |
Starter volts | 12 |
Coolant capacity | 3.9 qts
3.7 L |
Coolant change | 2000 h |

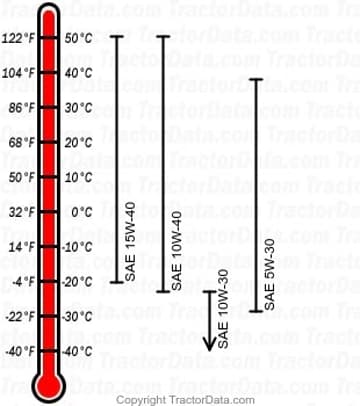

Engine Oil | |
|---|---|
 | |
Oil capacity | 2.9 qts
2.7 L |
Oil change | 200 h |
