John Deere 1350

The John Deere 1350 is a tractor produced by John Deere. It is equipped with a 179.4 ci 2.9 L engine. The listed engine power is Diesel (listed): 37.5 hp / 28.0 kW; Diesel (listed): 3.6 hp / 2.7 kW. Transmission: 12 forward and 8 reverse. Operating weight: 5360 lbs 2431 kg.

Engine Power
Diesel (listed): 37.5 hp / 28.0 kW; Diesel (listed): 3.6 hp / 2.7 kW
Fuel & Capacities
19 gal 71.9 L
Transmission
12 forward and 8 reverse
Operating Weight
5360 lbs 2431 kg

Overview

John Deere 1350 tractor photo
1986 - 1994 Utility tractor
Production
Manufacturer
John Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany
John Deere 1350 Engine
John Deere 2.9L 3-cyl diesel
Fuel tank
19 gal 71.9 L
Engine details ...
John Deere 1350 Power
Engine
37.5 hp 28.0 kW
Mechanical
Two-wheel drive
Steering
manual
Hydraulic wet disc brakes
four-post ROPS.
Hydraulics
Pump flow
5.8 gpm 22.0 lpm
11.6 gpmOptOptional 43.9 lpm
Tractor hitch
Rear Type
II/I
Rear lift
5283 lbs 2396 kg
Power Take-off (PTO)
Rear PTO Type
540
540/1000
Dimensions & Tires
Wheelbase
86.7 inches 220 cm
Weight
5360 lbs 2431 kg
Front tire
6.50-16
Rear tire
9.5-36
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
55
Battery volts
12
Battery AH
88
References
1350 references literature
Traktor 1350 published in 1987, by John Deere

Engine

Engine Detail — 179.4 ci / 2.9 L Diesel

Manufacturer
John Deere
Fuel Type
Diesel
Configuration
3-cylinder, liquid-cooled
Displacement
179.4 ci 2.9 L
Bore/Stroke
4.193x4.331 inches 107 x 110 mm
Power
37.5 hp 28.0 kW
Rated RPM
2300
Starter volts
12
Starter power
3.6 hp 2.7 kW

Transmission

Transmission options
8-speed synchromesh
16-speed
12-speed creeper

Transmission — 8 forward and 4 reverse synchromesh

Type
synchromesh
Gears
8 forward and 4 reverse
1350 synchromesh speeds

Transmission — 16 forward and 8 reverse

Gears
16 forward and 8 reverse

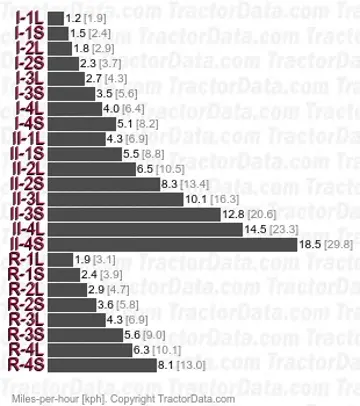

1350 speeds

Transmission — 12 forward and 8 reverse creeper

Type
creeper
Gears
12 forward and 8 reverse
Optional creeper adds additional range to the 8-speed transmission.
1350 creeper speeds

Dimensions

John Deere 1350 Tires
Ag front
6.50-16
Ag rear
9.5-36
Ag rear
12.4-28
12.4-32
Dimensions
Wheelbase
86.7 inches 220 cm
Length
147.8 inches 375 cm
Width
65.4 inches 166 cm
Height
80.7 inches 204 cm
Shipping weight
5360 lbs 2431 kg
Clearance (front axle)
21 inches 53 cm
Front tread
49.6 to 81 inches 125 to 205 cm
Rear tread
49.6 to 73.2 inches 125 to 185 cm

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for John Deere 1350.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
