john deere 1520
 | 1968 - 1972
Utility tractor | 1968 - 1972 | Utility tractor |
|---|---|---|---|
1968 - 1972 | |||
Utility tractor | |||
1968 - 1972 | |
|---|---|
Utility tractor |
Transmission options | |
|---|---|
8-speed collar shift | |
16-speed two-speed power shift | |
8-speed power shuttle |
Transmission | |
|---|---|
Type | collar shift |
Gears | 8 forward and 4 reverse |
Clutch | dry disc |
Four gears (1-4) in two ranges (I/II) plus reverse (R) range. | |
Speeds | |
|---|---|
 |
Transmission | |
|---|---|
Type | two-speed power shift |
Gears | 16 forward and 8 reverse |
Clutch | dry disc |
Four gears (1-4) in two ranges (I/II) plus reverse (R) range. Left-hand power shift lever on dash. | |

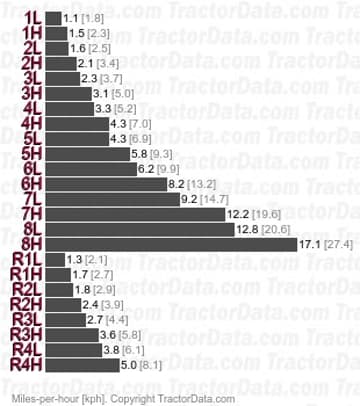

Speeds | |
|---|---|
 |
Transmission | |
|---|---|
Type | power shuttle |
Gears | 8 forward and 4 reverse |
Four gears (1-4) in two ranges (I/II) with left-hand reverser lever. Reverse only available in low (I) range. | |

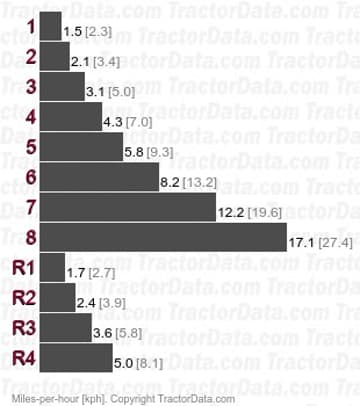

Speeds | |
|---|---|
 |
