john deere 1630
 | 1973 - 1979
Utility tractor | 1973 - 1979 | Utility tractor |
|---|---|---|---|
1973 - 1979 | |||
Utility tractor | |||
1973 - 1979 | |
|---|---|
Utility tractor |
Transmission options | |
|---|---|
8-speed partially synchronized | |
16-speed two-speed power shift |
Transmission | |
|---|---|
Type | partially synchronized |
Gears | 8 forward and 4 reverse |
Clutch | dry disc |
Four synchronized gear in two ranges, plus reverse range. Tractor must be stopped, and clutch used, to shift range. | |
Speeds | |
|---|---|
 |

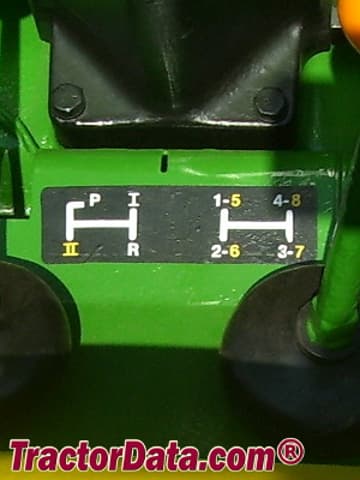

Shift Pattern | |
|---|---|
 |
Transmission | |
|---|---|
Type | two-speed power shift |
Gears | 16 forward and 8 reverse |
Four gears (1-4) in two ranges (I/II) plus reverse (R) range. Left-hand power shift lever on dash. | |

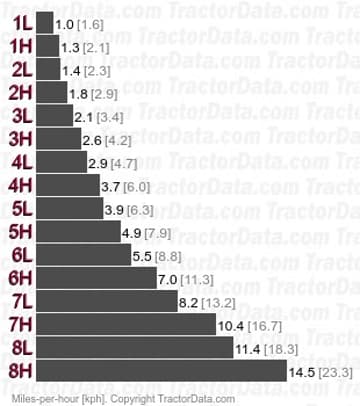

Speeds | |
|---|---|
 |
