john deere 1650
 | 1984 - 1988
Utility tractorYanmar built | 1984 - 1988 | Utility tractor | Yanmar built |
|---|---|---|---|---|
1984 - 1988 | ||||
Utility tractor | ||||
Yanmar built | ||||
1984 - 1988 | |
|---|---|
Utility tractor | |
Yanmar built |
Engine Detail | |
|---|---|
Yanmar | |
turbocharged diesel | |
4-cylinder | |
liquid-cooled inline | |
Displacement | 190 ci
3.1 L |
Bore/Stroke | 3.74x4.33 inches
95 x 110 mm |
Power (gross) | 67 hp
50.0 kW |
Fuel use | 3.338 gal/hour
12.6 l/hour |
Fuel system | direct injection |
Air cleaner | dual paper elements |
Compression | 18:1 |
Rated RPM | 2300 |
Idle RPM | 800-2475 |
Firing order | 1-3-4-2 |
Starter volts | 12 |
Coolant capacity | 11.1 qts
10.5 L |

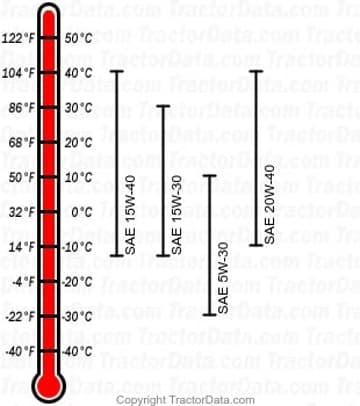

Engine Oil | |
|---|---|
 | |
Oil capacity | 12.7 qts
12.0 L |
Oil change | 200 h |
